Product information "Air Systems - 12" Explosion-Proof Axial Fan"

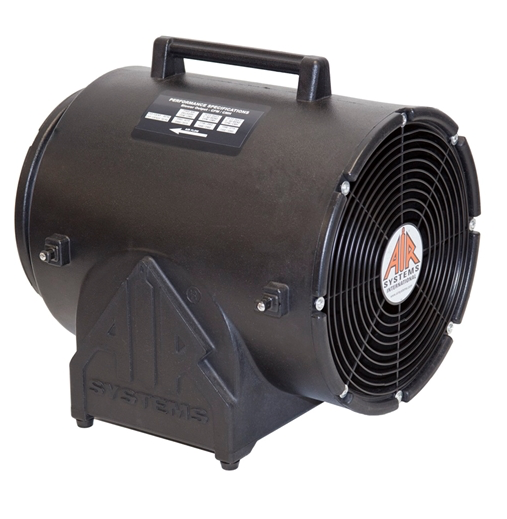

CVF-12EXP | 12" Explosion-Proof Axial Fan – 115V
Built for demanding ventilation needs in hazardous locations, the Air Systems International CVF-12EXP is a high-performance 12" axial fan delivering up to 2,483 CFM of free air. This explosion-proof fan operates on a 1 HP, 115 VAC motor and is certified for Class I, Division I, Groups C & D and Class II, Division I, Groups E, F, & G—making it a trusted choice for industrial, emergency response, tank entry, and shipyard applications.
With a sealed on/off switch, 25-foot power cord, and CSA C/US and CE certifications, the CVF-12EXP meets strict safety standards for confined space operations. Explosion-proof plugs are sold separately but can be factory-installed at no extra charge before shipment.
Performance Ratings:
2,483 CFM Free Air
1,738 CFM with 15’ duct & 1 x 90° bend
1,598 CFM with 15’ duct & 2 x 90° bends
Key Features:
Certified for hazardous locations (Class I & II, Groups C-G)
1 HP motor, 115 VAC, 60 Hz, single phase
Lightweight, durable build – 52 lbs
25’ power cord with sealed switch (no plug included)
Optional conductive duct canisters and Saddle Vent® accessories available
Compatible Accessories:
Conductive duct canisters: 15’ or 25’ (CVCAN1215C, CVCAN1225C)
Conductive Saddle Vent®: SV-18912-B
Explosion-proof plug options (page 71 of the ASI catalog)
