Extrication Air Bags

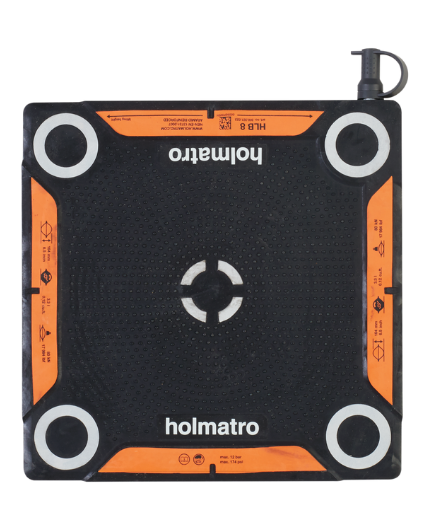

The Holmatro HLB Series Lifting Bags are designed for safe, controlled lifting of heavy objects in vehicle rescue, disaster response, industrial operations, and more. With a working pressure of 174 psi (12 bar) and durable aramid reinforcement, these lightweight, low-profile lifting bags combine maximum lifting force with precision control in even the tightest spaces.The HLB Series provides a complete range of bag sizes—whether you need compact lifting power or large footprint stability. Smart design features like integrated carrying handles, center markings, non-slip interlocking profiles, and clear safety labeling make operation easier and safer.Key Features:High Pressure, Compact Size: Lift loads up to 211,000+ lbs using compressed air at 174 psi, while minimizing footprint.Integrated Carrying Handles: For fast and easy deployment.Center Markings & Interlocking Profiles: Align and stack bags securely when needed.Important Information Labels: Display safety warnings, lifting height, and specifications clearly.Aramid Reinforced: Exceptional durability with a 4:1 safety factor.Reflective Markings: Improve visibility during nighttime or low-light operations.Standard Slider Pads: Help insert bags under tight spaces easily.Compatible with Holmatro HDC 12 Control Unit: Ensures precise airflow regulation for safe, independent lifting.EN 13731 and NFPA 1936 CompliantAvailable Models:(Select size via dropdown menu)Model    Part  # Max Lifting Force (lbf)Max Inflation Height (inches)Dimensions (L × W × H) (inches)Weight (lb)HLB 2    350.321.021           4,721                  3.7            7.9 × 6.3 × 0.9     1.5HLB 6    350.321.022          12,364                  5.6           11.2 × 9.6 × 0.9     3.3HLB 8    350.321.023          18,434                  7.0            13.2 × 11.6 × 0.9     4.6HLB 11    350.321.025          24,729                  8.2          15.9 × 12.8 × 1.0      7.1HLB 16    350.321.026          34,845                  9.3         18.4 × 15.4 × 1.0      9.9HLB 21    350.321.027          47,210                  10.5         20.4 × 17.3 × 1.0     12.3HLB 31    350.321.028          68,792                  12.6         23.9 × 20.9 × 1.1     18.3HLB 38    350.321.030          83,179                  13.9        26.1 × 23.0 × 1.1     22.0HLB 53    350.321.031          116,901                  16.2        30.2 × 27.2 × 1.1     33.1HLB 63    350.321.032         139,382                  18.0         32.6 × 29.5 × 1.1.      37.5HLB 85    350.321.034          192,212                  21.7       37.3 × 34.3 × 1.1     50.7HLB 96    350.321.033          211,320                  22.2        38.9 × 35.8 × 1.1      55.1System Requirements (Sold Separately):Pressure Reducer (PRV 12 HP CGA-347)HDC 12 Control UnitShut-off Hose SOH 174Air Adapter Set AAS 12Air Hoses (Available in different lengths)Not sure what you need? IPS can help you build a complete lifting system customized for your application!Shipping Restriction:This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.

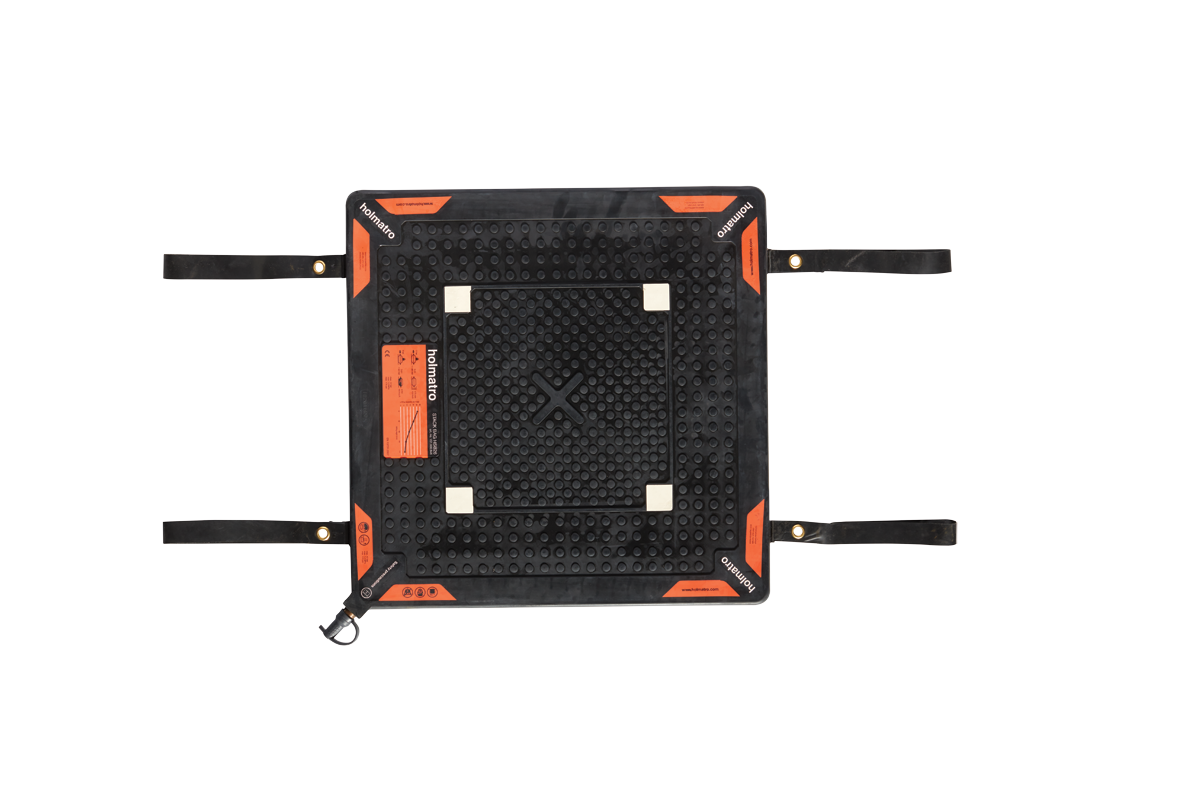

The Holmatro HSB Stack Bags offer a powerful and safe solution for lifting heavy loads over greater heights with outstanding stability. These innovative flat-surface air bags are engineered to be stacked—up to three high—allowing rescuers to lift heavy objects up to 20 inches while maintaining superior balance and safety.Compact, lightweight, and reinforced with aramid fibers for maximum durability, HSB Stack Bags are ideal for vehicle extrications, disaster response, industrial accidents, and any situation where stable lifting is critical.Key Features:Flat-Surface Inflation: Contact surface remains flat during operation, improving stability and allowing safe stacking of up to three bags.Same Lifting Height for All Models: Regardless of footprint, every model reaches the same maximum inflation height for easier system planning.Center Markings and Non-Slip Profile: Designed for quick, easy, and secure stacking with minimized risk of slippage.Aramid-Reinforced Construction: Exceptional strength-to-weight ratio with a 4:1 safety factor.Integrated Dust Caps and Carrying Straps: Protect connection points and make handling effortless.Clear Information Labels: Lifting force, dimensions, and safety markings printed directly on each bag.EN 13731 and NFPA 1936 CertifiedCompatible with the HTC12 Control Unit: Specialized three-way controller allows operation of up to three bags independently.Available Models:(Select size via dropdown menu)Model      Part #            Max Lifting Force    (lbf)Max Inflation Height (inches)               Dimensions (L × W × H) (inches)          Weight    (lb)HSB27           151.000.948                 59,574                  6.7          20.5 × 20.5 × 1.1          20.3HSB40151.000.949                 75,985                  6.7          24.4 × 24.4 × 1.1          28.7HSB74151.000.950                 147,924                  6.7          33.1 × 33.1 × 1.1          52.5HSB92151.000.951                 185,467                  6.7          36.2 × 36.2 × 1.1          61.7System Requirements (Sold Separately):Pressure Reducer (PRV 12 HP CGA-347)HTC12 Control Unit (for three-bag control)Air Hoses (Available in different lengths)Shut-off Hoses (SOH 174)Retaining Strap Set (for securing stacked bags)Air Adapter Set (AAS 12)📞 Not sure what you need? IPS can help you build a complete HSB Stack Bag system customized for your application!Why Choose Holmatro HSB Stack Bags?Stable at Full Height: Unlike traditional lifting bags that become unstable when fully inflated, HSB bags retain a wide, flat contact area.Greater Lifting Heights: Stack three bags together to reach up to 20 inches of safe, controlled lift—even in confined spaces.Optimized for Real-World Rescue: Lightweight, easy to transport, and simple to deploy when every second counts.Shipping Restriction:This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.

High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations. Key Features & Benefits-EN 13731 certified-Stackable up to 2 bags-Extra durable-Thin design

High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations. Key Features & Benefits-EN 13731 certified-Stackable up to 2 bags-Extra durable-Thin design

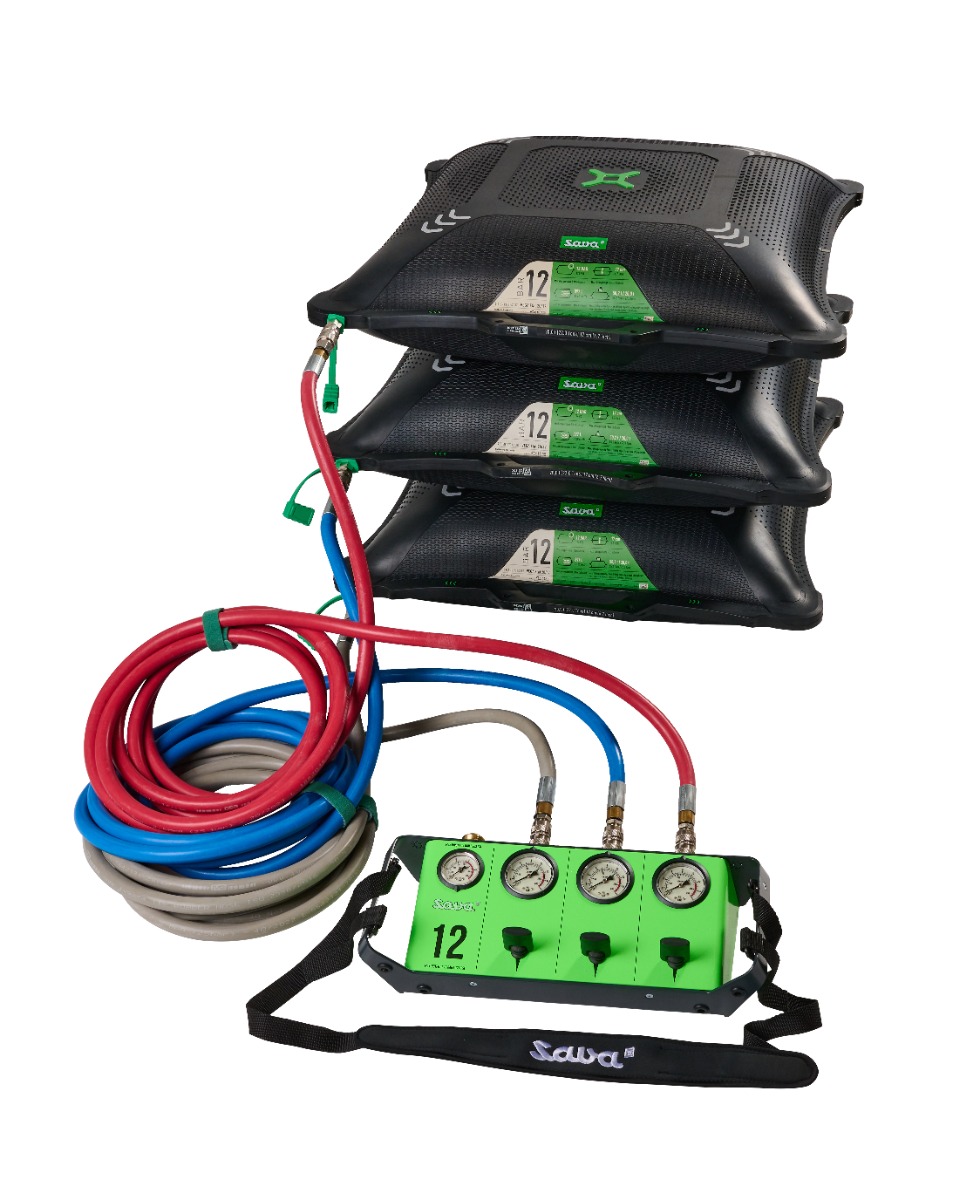

High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations. Key Features & Benefits-EN 13731 certified-Stackable up to 3 bags-Superb stability-Flat surface

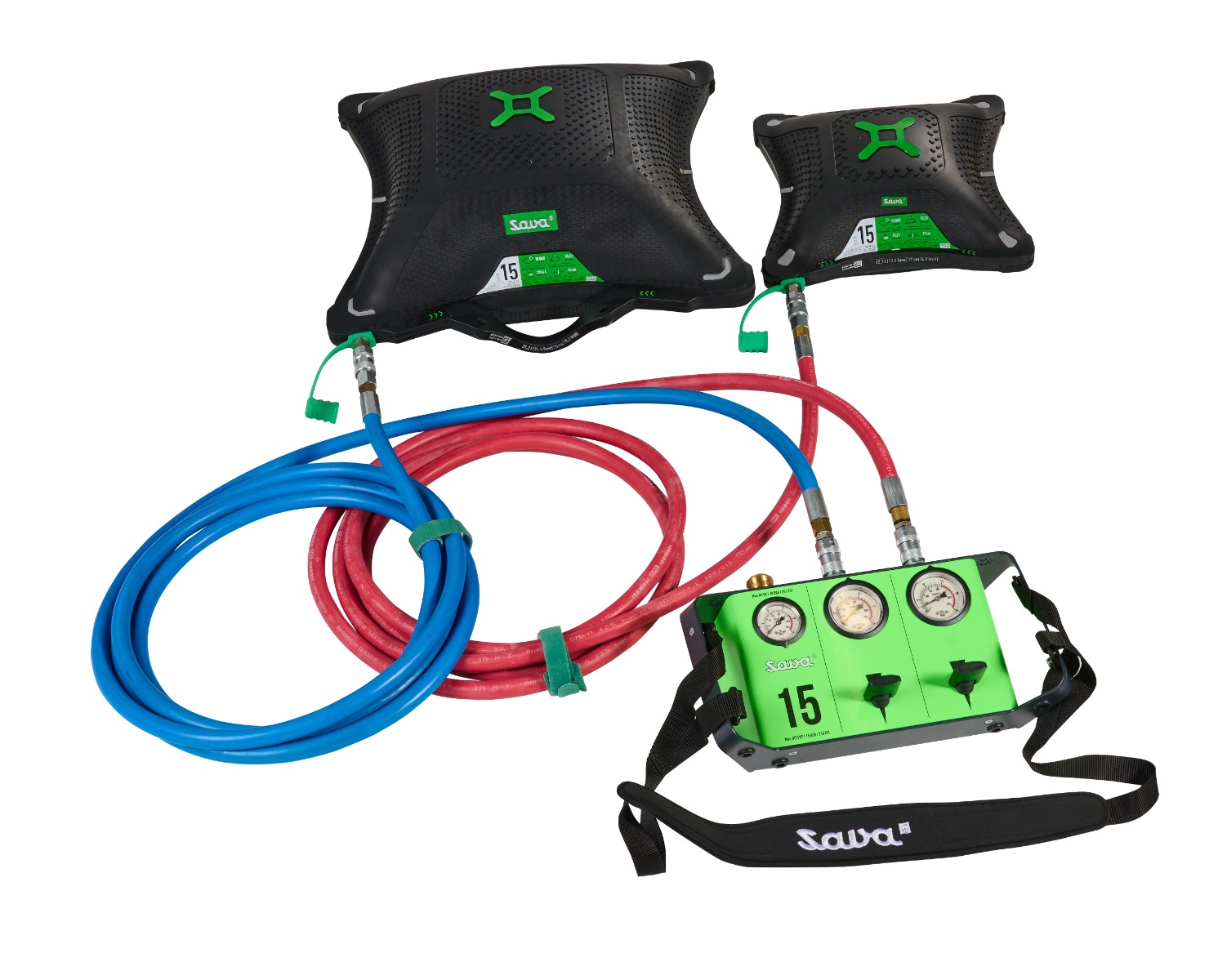

High-pressure lifting bags exert maximum force in a concentrated area, making them ideal when lifting rigid structures in tight places. Their unique structure also allows use in load shifting, heavy truck or aircraft recovery and different moving situations.  NOVA lifting bags, a novelty in high-pressure lifting bags assortment, will astonish with its lifting capacity and pressure class. It represents a new concept in the field of rescue and recovery, including new design with many new features on both, the bags and accessories.  Key features & benefits-Extremely durable-Lifting height marking-EN 13731   NFPA 1936-Interlocking system

With boosting the already proven properties of our existing assortment we introduce a new concept in the field of rescue and recovery. Our new design brings many new features on both, the bags and accessories. Key Features & Benefits-Extremely durable-Lifting height marking-EN 13731 -NFPA 1936-Interlocking system

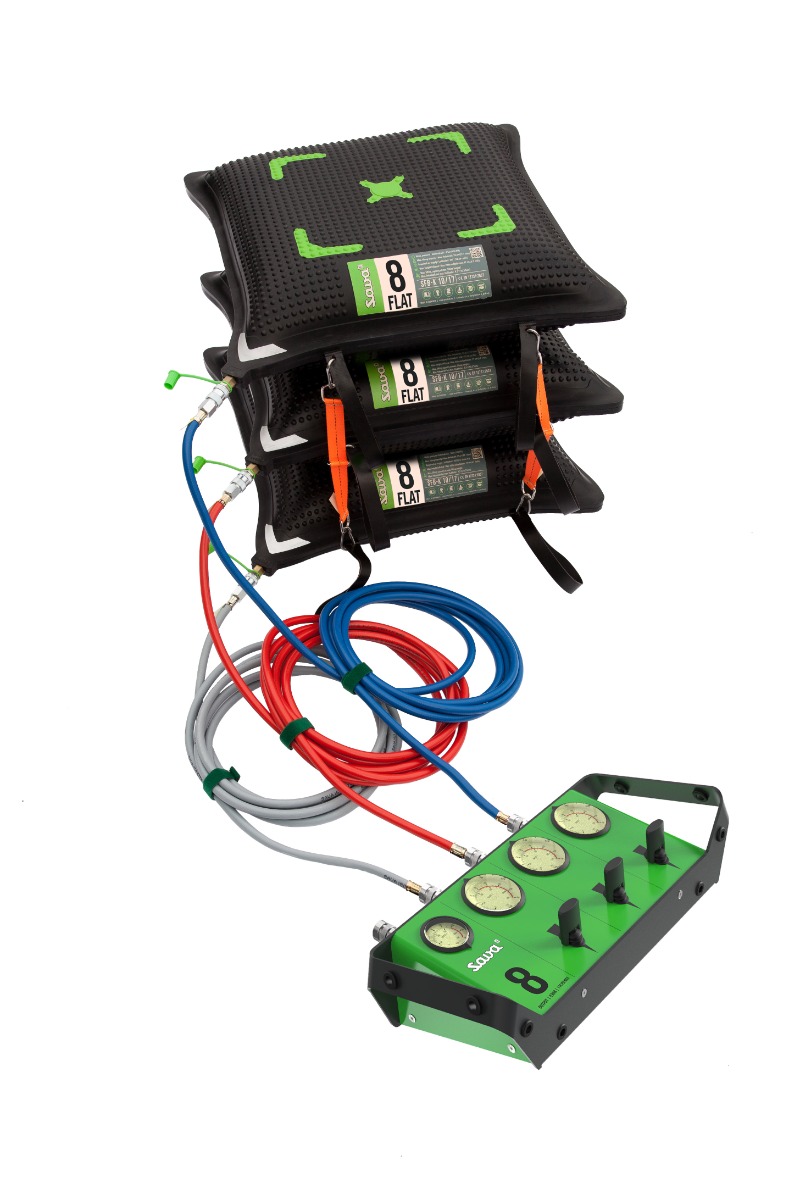

The flat bags enable superior stability and encompass improved features making them the best lifting bag on the market. Their unique flat surface design allows stability that greatly increases operator safety. Placing 3 FLAT bags on top of each other makes them useful in a variety of demanding situations. Our new design brings many new features on both, the bags and accessories. Key Features & Benefits-Stackable up to 3 bags-Superb stability -EN 13731-NFPA 1936-Interlocking system
