Product information "Holmatro - HLB Series Lifting Bags"

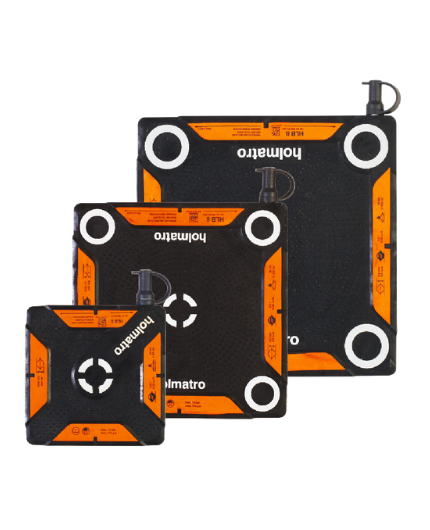

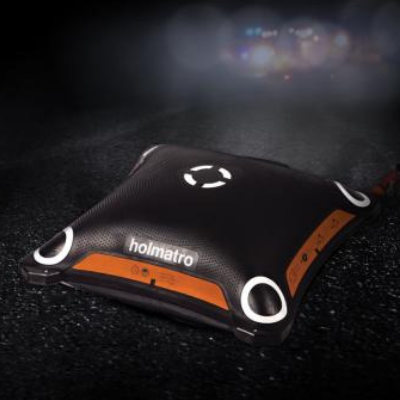

The Holmatro HLB Series Lifting Bags are designed for safe, controlled lifting of heavy objects in vehicle rescue, disaster response, industrial operations, and more. With a working pressure of 174 psi (12 bar) and durable aramid reinforcement, these lightweight, low-profile lifting bags combine maximum lifting force with precision control in even the tightest spaces.

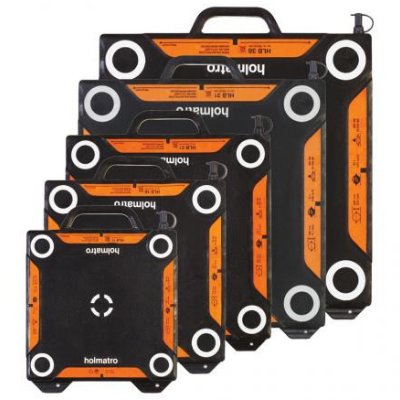

The HLB Series provides a complete range of bag sizes—whether you need compact lifting power or large footprint stability. Smart design features like integrated carrying handles, center markings, non-slip interlocking profiles, and clear safety labeling make operation easier and safer.
Key Features:
High Pressure, Compact Size: Lift loads up to 211,000+ lbs using compressed air at 174 psi, while minimizing footprint.

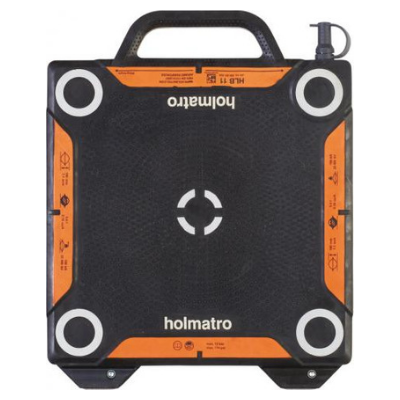

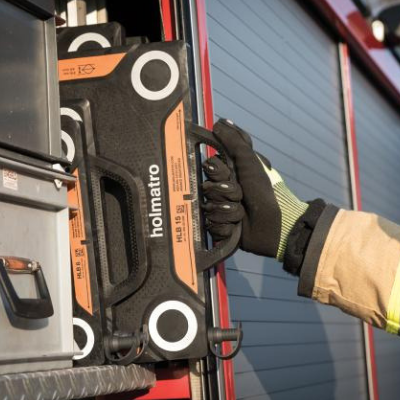

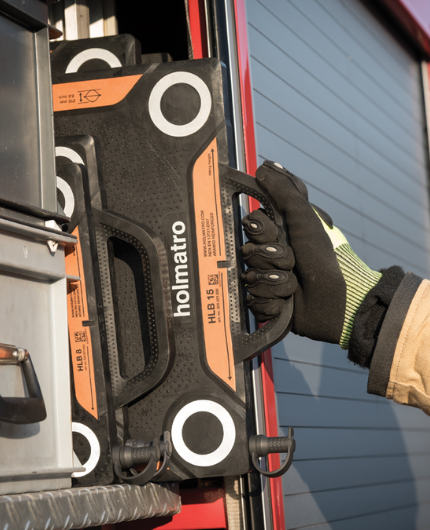

Integrated Carrying Handles: For fast and easy deployment.

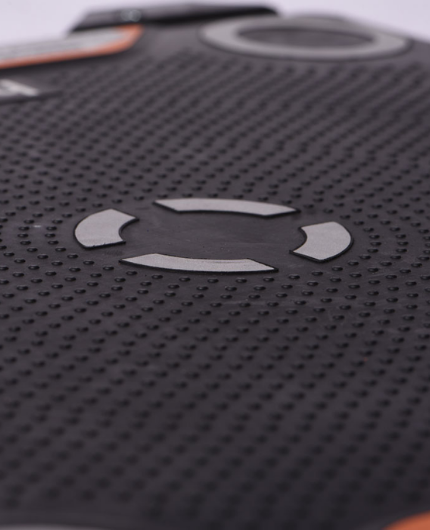

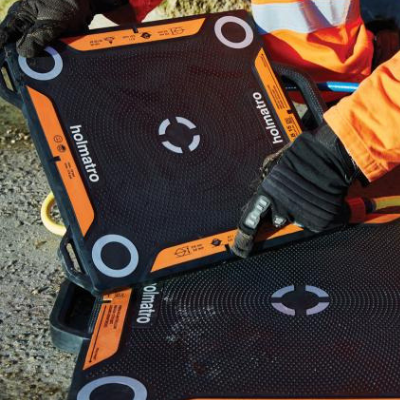

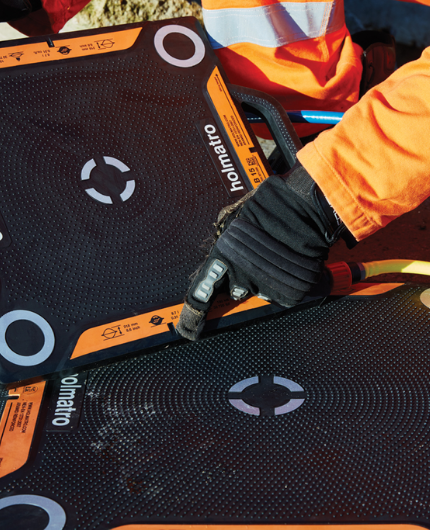

Center Markings & Interlocking Profiles: Align and stack bags securely when needed.
Important Information Labels: Display safety warnings, lifting height, and specifications clearly.
Aramid Reinforced: Exceptional durability with a 4:1 safety factor.
Reflective Markings: Improve visibility during nighttime or low-light operations.

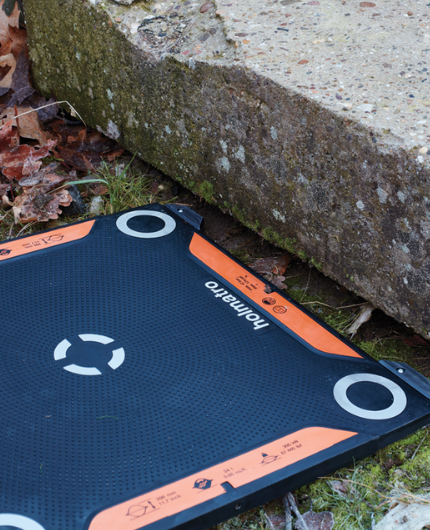

Standard Slider Pads: Help insert bags under tight spaces easily.
Compatible with Holmatro HDC 12 Control Unit: Ensures precise airflow regulation for safe, independent lifting.
EN 13731 and NFPA 1936 Compliant
Available Models:
(Select size via dropdown menu)
| Model | Part # | Max Lifting Force (lbf) | Max Inflation Height (inches) | Dimensions (L × W × H) (inches) | Weight (lb) |
|---|---|---|---|---|---|
| HLB 2 | 350.321.021 | 4,721 | 3.7 | 7.9 × 6.3 × 0.9 | 1.5 |
| HLB 6 | 350.321.022 | 12,364 | 5.6 | 11.2 × 9.6 × 0.9 | 3.3 |
| HLB 8 | 350.321.023 | 18,434 | 7.0 | 13.2 × 11.6 × 0.9 | 4.6 |
| HLB 11 | 350.321.025 | 24,729 | 8.2 | 15.9 × 12.8 × 1.0 | 7.1 |
| HLB 16 | 350.321.026 | 34,845 | 9.3 | 18.4 × 15.4 × 1.0 | 9.9 |
| HLB 21 | 350.321.027 | 47,210 | 10.5 | 20.4 × 17.3 × 1.0 | 12.3 |
| HLB 31 | 350.321.028 | 68,792 | 12.6 | 23.9 × 20.9 × 1.1 | 18.3 |
| HLB 38 | 350.321.030 | 83,179 | 13.9 | 26.1 × 23.0 × 1.1 | 22.0 |
| HLB 53 | 350.321.031 | 116,901 | 16.2 | 30.2 × 27.2 × 1.1 | 33.1 |
| HLB 63 | 350.321.032 | 139,382 | 18.0 | 32.6 × 29.5 × 1.1. | 37.5 |
| HLB 85 | 350.321.034 | 192,212 | 21.7 | 37.3 × 34.3 × 1.1 | 50.7 |
| HLB 96 | 350.321.033 | 211,320 | 22.2 | 38.9 × 35.8 × 1.1 | 55.1 |
System Requirements (Sold Separately):
Pressure Reducer (PRV 12 HP CGA-347)
HDC 12 Control Unit
Shut-off Hose SOH 174
Air Adapter Set AAS 12
Air Hoses (Available in different lengths)
Not sure what you need? IPS can help you build a complete lifting system customized for your application!
Shipping Restriction:
This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.
