BW Technologies by Honeywell - BW Clip 2 Year Single Gas Detector BWC2-H
Product information "BW Technologies by Honeywell - BW Clip 2 Year Single Gas Detector BWC2-H"

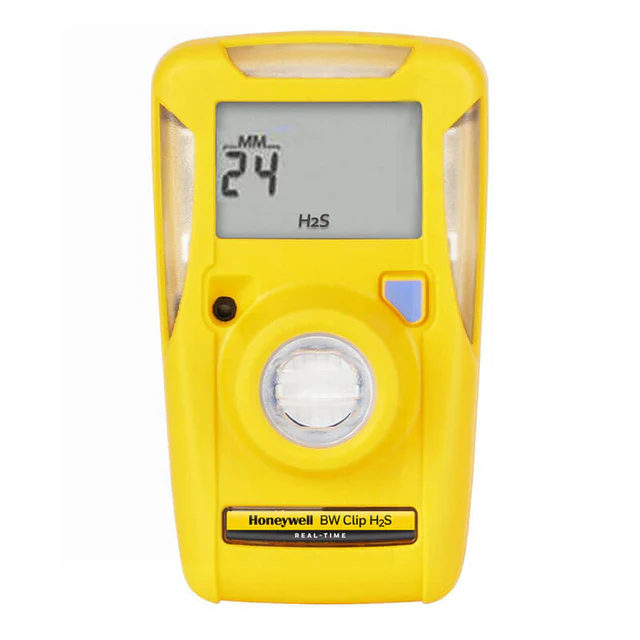

Honeywell BW Clip 2-Year H₂S Single Gas Detector – Model BWC2-H
The Honeywell BW™ Clip Series is the simplest way to ensure safety from hydrogen sulfide (H₂S) exposure. The BWC2-H model provides two years of maintenance-free protection with no need for calibration, battery replacement, or sensor replacement. It’s the go-to single-gas detector for dependable H₂S monitoring in demanding environments such as fire response, confined space entry, water treatment, oil & gas, and hazmat operations.
Key Features:
Two-Year Continuous Operation – No charging or calibration required
Simple One-Button Operation – Easy to use, even while wearing gloves
Maintenance-Free – Turn it on once, and it runs continuously for 2 years
Compact & Lightweight – Comfortable for all-day wear on a collar, belt, or harness
Reliable Alarm System – Visual, vibrating, and audible alarms when H₂S exceeds threshold
Automated Self-Test – Performs internal diagnostics every 24 hours
Event Logging – Stores the last 35 gas exposure and bump test events
Compatible with IntelliDoX & MicroDock II – For quick bump testing and reporting
Hibernation Option – Use a hibernation case (sold separately) to pause the unit when not in use
Specifications:
| Parameter | Details |
|---|---|
| Gas Detected | Hydrogen Sulfide (H₂S) |
| Measurement Range | 0 – 100 ppm |
| Low Alarm Setpoint | 10 ppm |
| High Alarm Setpoint | 15 ppm |
| Alarm Types | Visual, audible (95 dB), and vibrating |
| Event Logging | Up to 35 events (gas exposure and self-tests) |
| Operating Life | 2 years (from activation) |
| Sensor Type | Electrochemical |
| Self-Test Frequency | Every 24 hours |
| Ingress Protection Rating | IP66/67 (dust-tight and water-resistant) |
| Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Size | 3.4" x 2.0" x 1.1" (87 x 50 x 28 mm) |
| Weight | 3.2 oz (92 g) |
| Certifications | CSA, ATEX, IECEx, CE Marked |
| Warranty | Two years from activation (or 24 months of service life) |
Applications:
Fire Service & Hazmat Response
Confined Space Entry
Municipal & Industrial Safety
Oil, Gas, and Chemical Facilities
Utility & Water Treatment Plants
