Bauer - VERTICUS®


The days of “breadbox” designed compressor packages are over! Step up to the BAUER VERTICUS®.

Please Call for Assistance with Pricing

Phone: 603.685.8040

Product number: VERTICUS

Product information "Bauer - VERTICUS®"

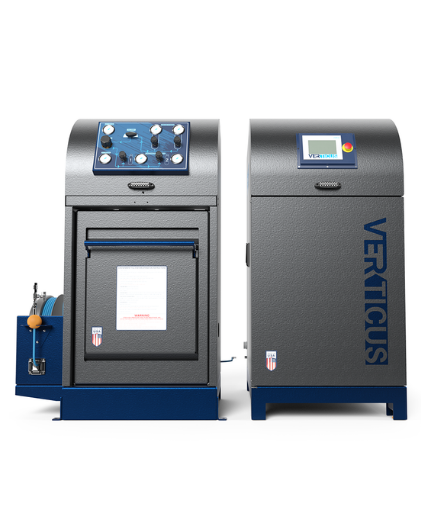

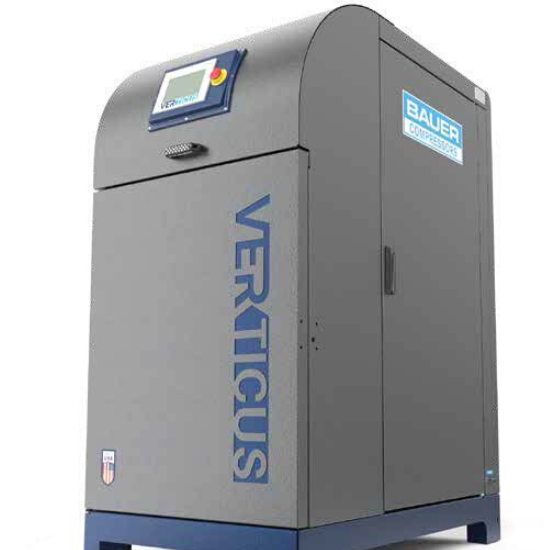

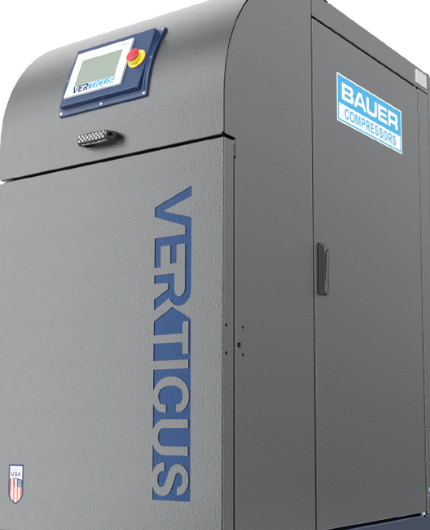

The days of “breadbox” designed compressor packages are over! Step up to the BAUER VERTICUS®. The updated sound attenuated cabinet is equipped with an operations panel which is unique, aesthetically pleasing, horizontally hinged, and gas shock supported; this ensures direct and easy access to the drive belts. Vertically hinged and lift-off side maintenance access doors (incorporating fast pin technology) make it a snap to remove the doors – no hand tools are required! The rear panel incorporates integral handles and a tabbed lift off design. The front vertically hinged access door is affixed with a hex keyed latch to eliminate accidental openings of the door while the system is operating. Sound attenuation has been incorporated on every possible panel to provide a nice and quiet operating level of approximately 72 dB (within one-meter). One package size accommodates BAUER high pressure air-cooled compressors from 5 to 20 HP motors. Our new, larger, 7” HMI enhances monitoring the system functions.

SYSTEM FOOTPRINT

VERTICUS:

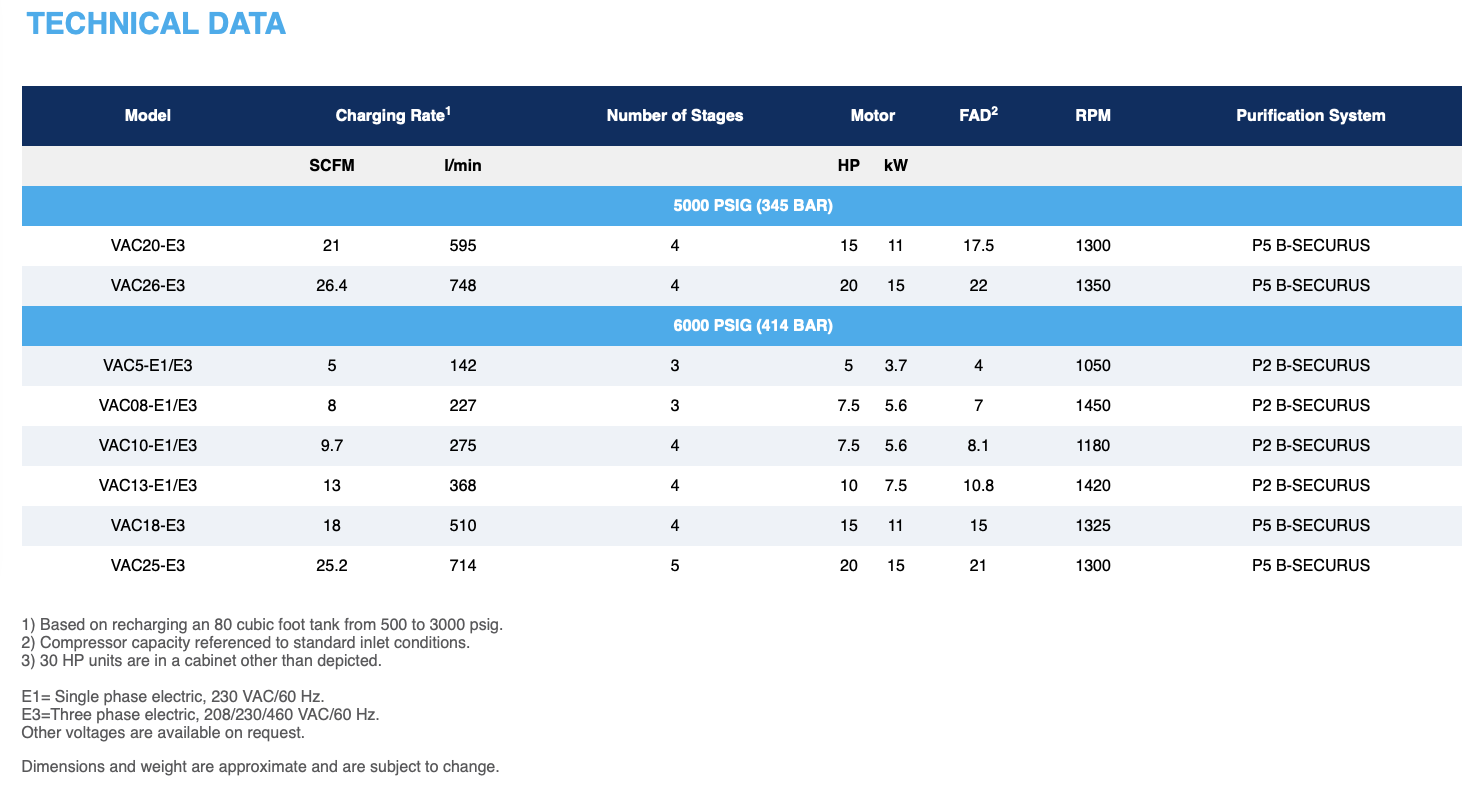

VAC5 - VAC26
DIMENSIONS L X W X H inches (mm)

  • 55” x 35” x 70” (1397mm x 737mm x 1778mm)
WEIGHT pounds (kg)
  • 1000 - 1400 lb (453.6 - 635 kg)

AVAILABLE ACCESSORIES (FACTORY INSTALLED)

  • CO monitoring system
  • B-Kool (floor mount only)
  • H2S monitoring system with audible alarm

STANDARD SCOPE OF SUPPLY
  • BAUER breathing air purification with SECURUS
  • BAUER PLC based controller with 7” color HMI touchscreen display
  • NEMA 4 rated electrical enclosure with UL® listed control panel
  • Compressor low oil pressure and high temperature safety shutdowns
  • Emergency stop push button and automatic start/stop control
  • Zero loss automatic condensate drain system with non-corrosive condensate reservoir and integrated float sensor and automatic "Full” indication and compressor shutdown
  • Interstage pressure gauges (locally mounted)
  • Vertically hinged front operations panel and lift-off side maintenance access doors
  • Inlet filter maintenance indicator
  • Unique hinged front operations panel
