CMC - HARKEN WINGMAN™

The Harken Industrial™ Wingman is a revolutionary compact mechanical advantage system that combines progress capture, hauling, and controlled release into one versatile tool. Built for rope access, rescue, and work-at-height professionals, Wingman simplifies rigging while maximizing efficiency and safety.

Key Benefits

• Compact & Versatile

  • Minimum overall length of just 8 in (20 cm) allows greater clearance under tripods and more throw during pick-offs.

  • Configurable as a 4:1 or 5:1 system, adaptable to multiple rigging scenarios




• Smooth, Controlled Operation

  • Innovative ratcheting sheave with integrated composite “wing” handle enables fine-tuned release under full load.

  • One-handed operation allows precise control while tending the rope




• Efficient Hauling

  • Ball-bearing pulleys deliver high efficiency for raising and lowering loads up to 681 lb (3 kN).

  • Eliminates the need for prusiks by capturing progress internally

• Rugged Construction

  • Anodized aluminum pulleys, stainless steel axles and ratchet, and a glass-reinforced nylon handle ensure durability in demanding environments.

  • Includes 15 m (49 ft) of 8 mm low-elongation rope with sewn termination — purpose-built and non-substitutable

Product Specifications

• Weight: 1.5 kg (3.2 lb) including bag

• Rope: 15 m (49 ft) x 8 mm static polyester HTP

• Max Rated Load: 3 kN (674 lbf)

• Slip Load: 4 kN (900 lbf)

• Minimum Breaking Strength: 45 kN (10,116 lbf)

• Certifications: NFPA (General Use, NFPA 2500), CE EN 12278:2007, UKCA EN 12278:2007

Applications

Wingman supports a wide range of field uses, including:

• Solo pick-offs & knot passing

• Personal mechanical advantage

• Effortless load transfer

• Litter attendant positioning and tethering

• Pre-tensioned back-ties & redirects

• High-angle scoops and rescues

Included with Wingman

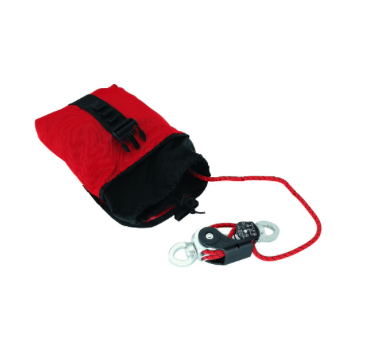

• Industrial-grade ballistic nylon carrying bag with locking buckle, drawstring, and drain grommets for proper drying and storage
