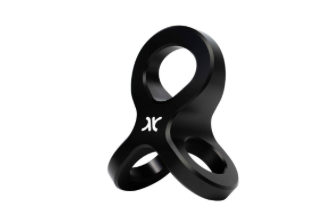

Product information "CMC - SQUID™ RIG PLATE"
The SQUID™ Rig Plate is an innovative, multi-planar rigging solution purpose-built for Twin Tension Rope Systems (TTRS) and load-sharing applications. Its unique design brings two devices together for simultaneous dual operation, making it a vital tool for modern rope rescue, work-at-height, and technical rigging
Key Benefits
Optimized for TTRS
Aligns two devices side-by-side with ideal spacing, enabling a single operator to manage twin tension control (“double clutching” or “shark finning”).
Promotes safe, efficient hauling and lowering in mirrored and nested systems
Multi-Planar Design
Features a large primary attachment point plus two perpendicular secondary points for flexible rigging.
Naturally orients toward the load, allowing components to move freely and reducing the risk of binding or extension during line or anchor failure
Versatile Rigging Applications
Ideal for TTRS, litter bridals, cross-hauls, and redundant load-sharing systems.
Compatible with a wide range of connection methods and hardware
Strong, Compact, Reliable
Made from aircraft-grade aluminum with no moving parts.
CE marked, NFPA certified:
General Use (MBS 45 kN / 10,116 lbf) for specific configurations.
Technical Use (MBS 27.7 kN / 6,227 lbf) when secondary points are pulled
Lightweight at just 240 g (0.52 lb) and compact at 10.4 × 8.4 × 5.1 cm (4.1 × 3.3 × 2 in)
| Category: | Rescue Equipment |
|---|
