Product information "FireCraft - GAS•TRAC® LZ-30 Laser Methane Gas Detector"
The GAS•TRAC® LZ-30 from SENSIT Technologies is a compact, intrinsically safe, methane-specific leak detector that allows operators to quickly and safely pinpoint leaks from a distance — up to 100 feet away. Utilizing advanced TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology, the LZ-30 delivers instantaneous, highly accurate readings without the need to directly access hazardous or hard-to-reach areas
Key Features & Benefits
Methane-Selective Detection – Instantly responds to the presence of methane while ignoring other gases for reduced false positives.
Long-Range, Non-Contact Measurement – Detect leaks from 0.5 m to 30 m (1.5’ to 100’), even through windows or across fenced-in property.
Adjustable Multi-Mode Alarms – Visual, audible, and tactile alarms with configurable thresholds.
SMART-LINK LIVE™ Connectivity – Streams gas measurements, GPS coordinates, date/time, and even photos or video to your Android device in real time. Sessions exportable in .CSV, .PDF, or .KML formats for reporting and traceability.
Ergonomic & Portable – Lightweight (300 g/0.7 lbs) with a protective boot, wrist strap, and rechargeable lithium-ion battery for up to 6 hours continuous operation.
Integrated Calibration Cell – Carrying case includes a calibration/bump test cell for easy maintenance.
Intrinsic Safety Design – Meets US and ATEX standards for use in hazardous environments.
Low Cost of Ownership – Easy to maintain, 2-year industry-leading warranty (including battery).
Applications
Natural Gas Industry: Upstream, midstream, downstream operations
Emergency Response: Fire, HazMat, rescue operations
Industrial Facilities: Steel mills, petrochemical plants, pulp and paper production, and more
Specifications
| Feature | Detail |
|---|---|
| Detection Technology | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Methane Detection Range | 0–50,000 ppm-m (1 ppm-m increments) |
| Sensitivity | ≤5 ppm-m ≤15 m / ≤10 ppm-m ≤30 m @ >300 ppm-m |
| Detection Distance | 0.5 m to 30 m (1.5’–100’) |
| Response Time | ≤0.1 seconds |
| Beam Dimension | 20 cm diameter at 30 m (8” at 100’) |
| Alarms | Visual, audible, tactile (adjustable threshold) |
| Warnings | High/Low reflection, low battery |
| Display | OLED |
| Communications | Bluetooth (Android app support) |
| Operating Temp | –20 °C to 50 °C (–4 °F to 122 °F) |
| Storage Temp | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | 5–95% non-condensing |
| Enclosure | IP54 |
| Weight | 300 g (0.7 lbs) |
| Size | 164 mm × 78 mm × 36 mm (6.5” × 3.0” × 1.5”) |
| Battery Life | 6 hours continuous; 3–4 hour recharge |

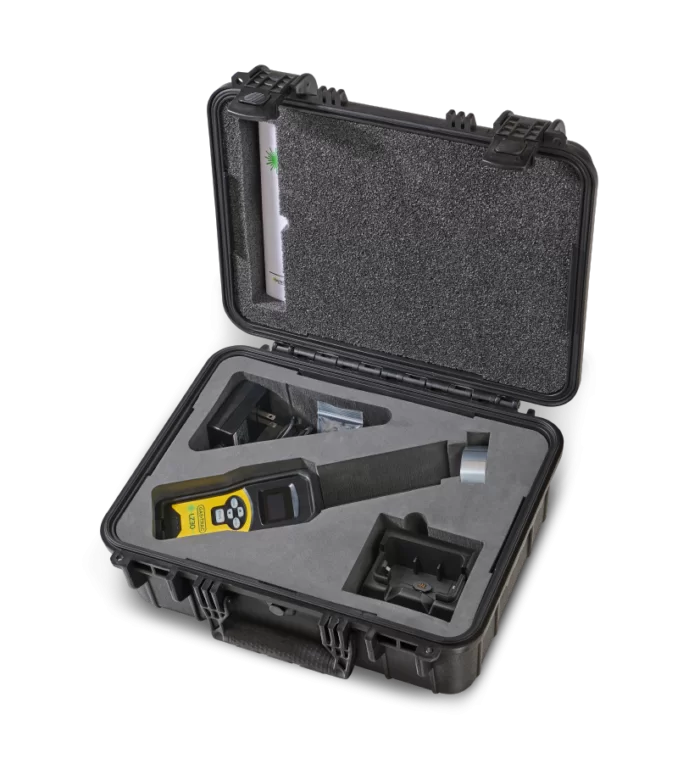

Standard Kit Includes
Hard carrying case with integrated calibration/bump test cell
Charger base with wall transformer
Protective boot
Wrist strap
Instruction manual
Why Choose the GAS•TRAC® LZ-30 from IPS?
IPS supplies leading detection technology to keep your crews safe. The LZ-30’s long-range, non-contact design improves safety and efficiency in methane leak detection, reduces exposure to hazardous environments, and delivers comprehensive data logging for compliance and reporting
| Category: | Gas Detection, Hazmat Response |
|---|
