HOLMATRO - CUTTER PCU50

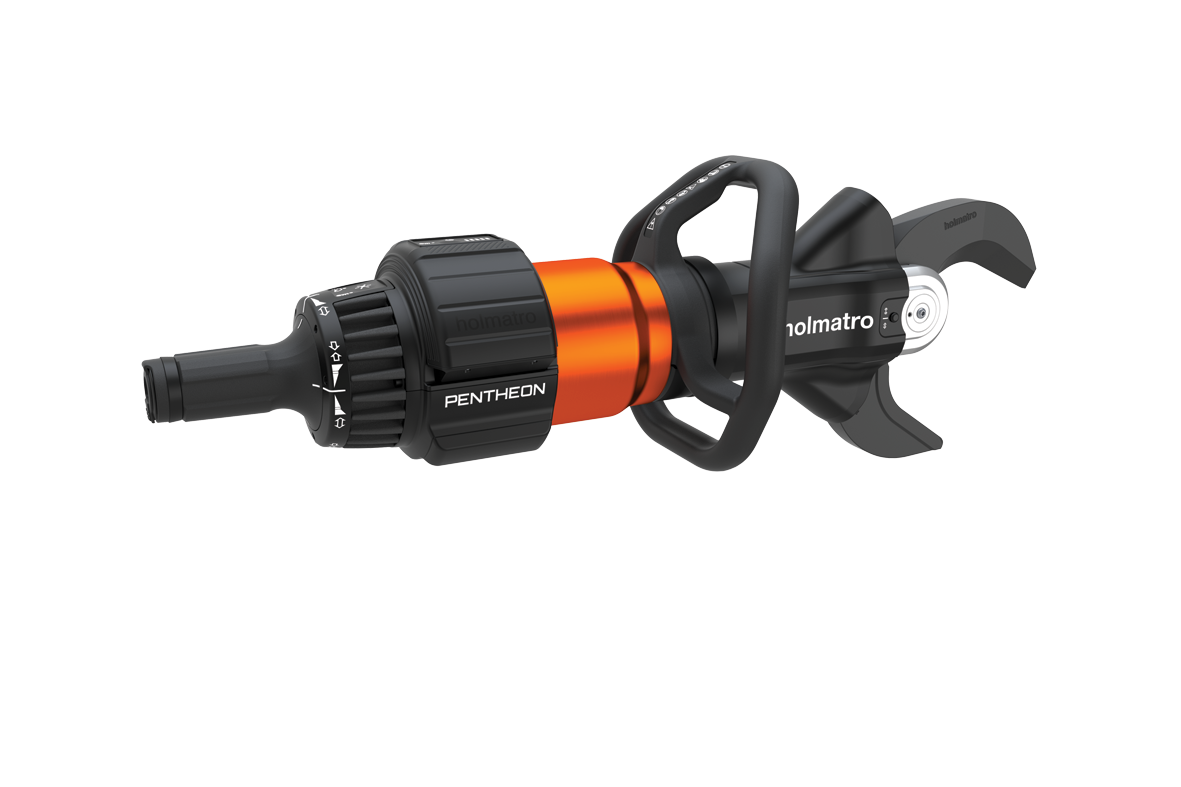

Holmatro Pentheon PCU50 Cordless Inclined Cutter

Unrivaled Speed. Ultimate Control. Built for Modern Rescue.

The Holmatro Pentheon PCU50 is a next-generation, battery-powered inclined cutter designed to meet the demands of modern rescue operations. As part of Holmatro's Pentheon Series, this tool offers unparalleled performance, advanced ergonomics, and intelligent connectivity, ensuring efficiency and safety in the most challenging scenarios.

Key Features:

Unparalleled Speed & Control

• Stepless Speed Maximization: Patented mechatronic system continuously optimizes motor and pump settings for maximum speed at any load.

• Two-Mode Control Handle: Switch between high-speed and low-speed modes for precise control during operations.

Advanced Battery Management

• On-Tool Charging System: Charge the battery directly on the tool; priority charging ensures the tool’s battery charges before others.

• Extended Working Time: Purpose-built battery with increased capacity and energy-efficient drive system.

• Auto Start/Stop Function: Motor stops automatically when not in use, conserving battery life.

Temperature Management Technology

• Continuous Monitoring: Tool and battery temperatures are monitored to prevent overheating.

• Adaptive Performance: In extreme temperatures, the tool adjusts power consumption to maintain operation without loss of force.

All-Weather & Submersible Use

• IP57 Protection Rate: Ensures flawless performance under water, in rain, snow, and extreme temperatures.

• Low Sound Emission: Quiet operation supports better communication on scene.

Real-Time Diagnostics

• Bluetooth Connectivity: Connect to the MyHolmatro app for real-time tool insights, including battery health, charge status, and motor temperature.

• LED Indicators: Provide immediate feedback on tool and battery status.

Ergonomic Design & Enhanced Safety

• 30° Inclined Cutter Jaw: Allows for comfortable waist-height operation, reducing the need to lift or bend during cuts.

• 360° Carrying Handle: Ergonomic, durable, and suitable for use from any angle.

• Integrated LED Lights: Illuminate the work area, powered by the tool battery with manual override.

Technical Specifications:

• Max. Cutting Opening: 182 mm (7.2 in)

• Theoretical Cutting Force: 1389 kN (312,260 lbf)

• Weight (Ready for Use): 21.5 kg (47.4 lb)

• Dimensions: 892 x 270 x 274 mm

• Protection Rating: IP57

• Compliance: EN 13204 (BC165K-21.5), NFPA 1936 (A8 B8 C7 D9 E9 F4)

• Cutting Capacity: Round bar (S235) up to 41 mm (1.6 in)

Required Accessories:

• Battery: PBPA287

• Battery Chargers: PBCH2 (AC-US) or PBCH3 (DC)

• Diagnostic Tools: Tool Diagnostic Cord (PTDC1) & Battery Diagnostic Tool (PBDT1)

• Mains Power Connector: PMC2 (US)

Looking for a different size cutter?

IPS also offers the full Holmatro Pentheon Cutter lineup, including the:

• PCU30CL – Compact for confined spaces

• PCU40 – Lightweight and versatile

• PCU60 – Extra cutting force and reach for heavy-duty operations.

  Contact IPS for help choosing the right cutter for your team.


Shipping Restriction: This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.
