HOLMATRO - Spreader PSP50

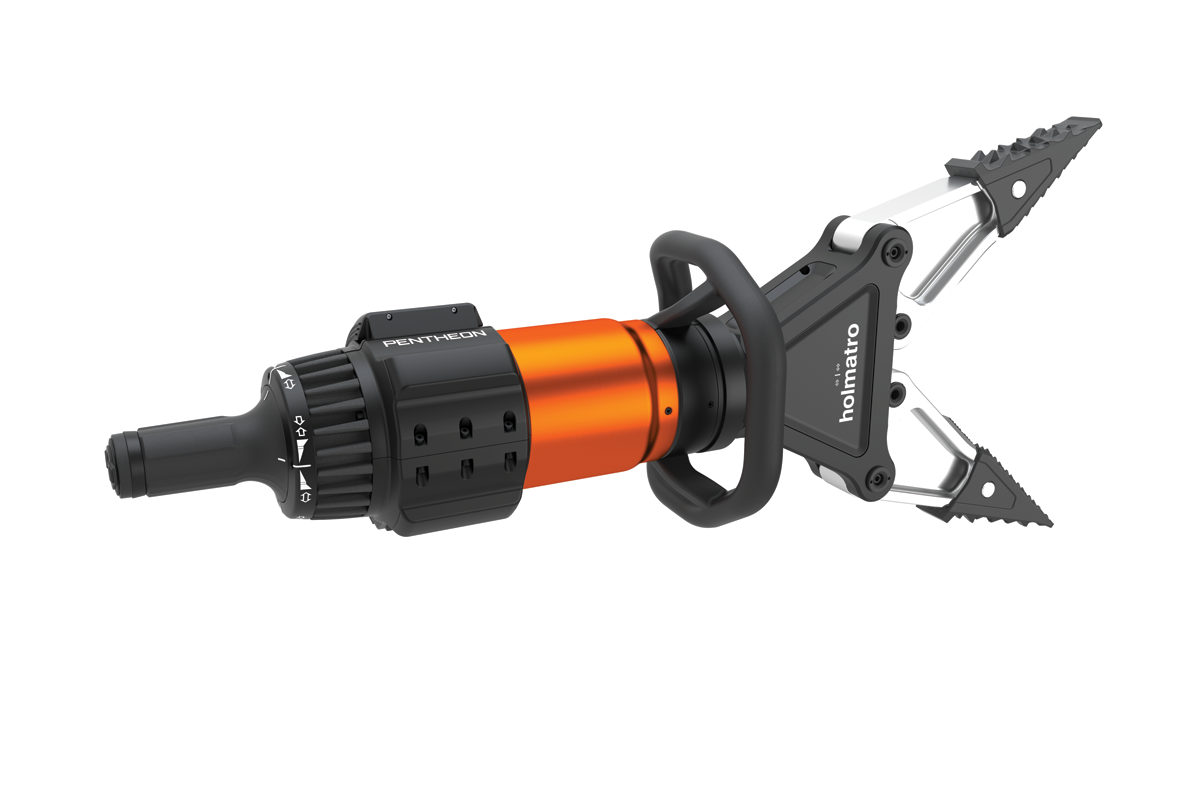

Holmatro Pentheon PSP50 Cordless Spreader

Unmatched Speed. Superior Control. Engineered for Modern Rescue.

The Holmatro Pentheon PSP50 is a next-generation, battery-powered spreader designed to meet the rigorous demands of contemporary rescue operations. As part of Holmatro's Pentheon Series, this tool offers unparalleled performance, advanced ergonomics, and intelligent connectivity, ensuring efficiency and safety in the most challenging scenarios.

Key Features:

Unmatched Speed & Control

• Stepless Speed Maximization: Patented mechatronic system continuously optimizes motor and pump settings for maximum speed at any load.

• Two-Mode Control Handle: Switch between high-speed and low-speed modes for precise, responsive control.

Advanced Battery Management

• On-Tool Charging: Charge directly on the tool with priority charging that favors the battery in use.

• Extended Working Time: Efficient motor and high-capacity battery maximize operational runtime.

• Auto Start/Stop: Motor activates when needed and powers down when idle to conserve battery.

Temperature Management Technology

• Monitors tool and battery heat in real-time

• Automatically adjusts performance in extreme conditions to prevent overheating or shutdown

All-Weather Performance

• IP57 Rated: Submersible and protected from dust, mud, rain, and snow

• Low sound emissions improve communication and situational awareness

Real-Time Diagnostics

• Bluetooth Connectivity with MyHolmatro App for monitoring tool health, battery status, and performance history

• LED indicators offer at-a-glance tool diagnostics on scene

Optimized Ergonomics

• Extreme Grip Spreader Tips with pointed, double-sided teeth for strong bite and reduced slippage

• 360° Carrying Handle for easy maneuverability in tight or angled positions

• Integrated LED Work Lights illuminate the rescue area with adjustable controls

Technical Specifications:

• Max. Spreading Distance: 725 mm (28.5 in)

• Max. Spreading Force: 366 kN (82,280 lbf)

• Theoretical Max. Force: 875 kN (196,708 lbf)

• Max. Squeezing Force: 135 kN (30,349 lbf)

• Max. Pulling Force: 67 kN (15,062 lbf)

• Pulling Distance: 610 mm (24 in)

• Weight (Ready for Use): 21 kg (46.3 lb)

• Dimensions (L x W x H): 964 x 272 x 272 mm

• Protection Rating: IP57

• Compliance: EN 13204 (AS54/725-21), NFPA 1936

Required Accessories:

• Battery: PBPA287

• Chargers: PBCH2 (AC-US), PBCH3 (DC)

• Diagnostic Tools: Tool Diagnostic Cord (PTDC1), Battery Diagnostic Tool (PBDT1)

• Mains Power Connector: PMC2 (US)

Looking for a different size spreader?

IPS also offers the full Holmatro Pentheon Spreader lineup, including the:

• PSP40CL – Compact for tight or confined spaces

• PSP40 – Lightweight, versatile, and highly maneuverable

• PSP60 – Maximum force and reach for the most demanding extrications


  Contact IPS to compare options and find the perfect tool for your department.

Shipping Restriction: This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.
