Holmatro - COMBI TOOL PCT11

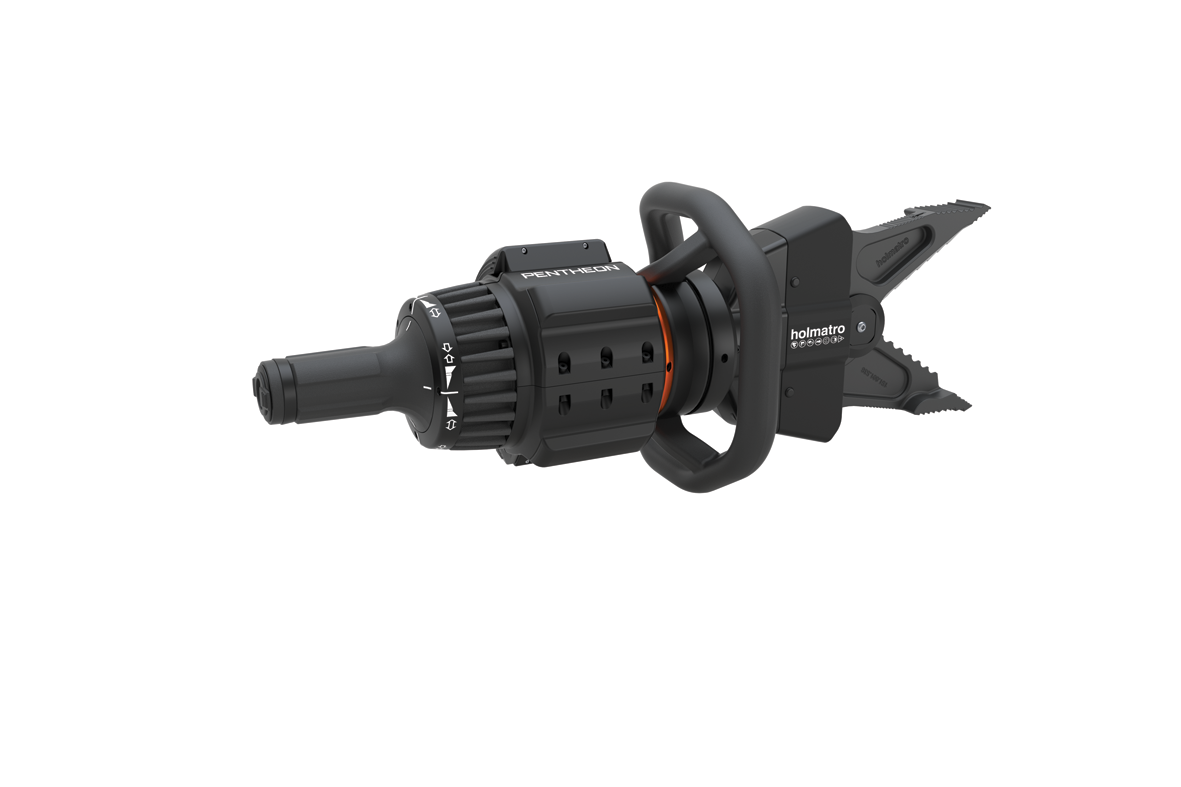

Holmatro Pentheon PCT11 Cordless Combi Tool

Compact Power. Unmatched Speed. Built for Rapid Response.

The Holmatro Pentheon PCT11 is a compact, battery-powered combi tool designed for rapid deployment in challenging rescue scenarios. As part of Holmatro's Pentheon Series, this tool offers unparalleled performance, advanced ergonomics, and intelligent connectivity, ensuring efficiency and safety in the most demanding situations.

Key Features:

Unmatched Speed & Control

• Stepless Speed Maximization: Patented mechatronic system continuously optimizes motor and pump settings for maximum speed at any load.

• Two-Mode Control Handle: Switch between high-speed and low-speed modes for precise control during operations.

Advanced Battery Management

• On-Tool Charging System: Charge the battery directly on the tool; priority charging ensures the tool's battery charges before others.

• Extended Working Time: Purpose-built battery with increased capacity and energy-efficient drive system.

• Auto Start/Stop Function: Motor stops automatically when not in use, conserving battery life.

Temperature Management Technology

• Continuous Monitoring: Tool and battery temperatures are monitored to prevent overheating.

• Adaptive Performance: In extreme temperatures, the tool adjusts power consumption to maintain operation without loss of force.

All-Weather & Submersible Use

• IP57 Protection Rate: Ensures flawless performance under water, in rain, snow, and extreme temperatures.

• Low Sound Emission: Improved drive system operates at a lower sound level, facilitating better communication during rescues.

Real-Time Diagnostics

• Bluetooth Connectivity: Connect to the MyHolmatro app for real-time tool insights, including battery health, charge status, motor temperature, and more.

• LED Indicators: Provide immediate feedback on tool status and battery condition.

Ergonomic Design & Enhanced Safety

• Unique Grip Teeth: Two grip teeth inside each blade prevent material from being pushed out during cutting.

• Removable Tips: Easily remove the tips from the blades by hand to cut material without crushing it, improving cutting performance.

• i-Bolt Technology: The i-Bolt presses the blades together directly (without a blade holder in between) and more tightly, minimizing blade separation and maximizing cutting performance.

• 360° Carrying Handle: Facilitates easy handling from any position, made of tough, damage-proof material.

• Integrated LED Lights: Illuminate the work area, powered by the main battery, with manual control option.

Technical Specifications:

• Model: PCT11

• Max. Working Pressure: 720 bar / 10443 psi

• Max. Spreading Force: 1350 kN / 303,492 lbf

• Min. Spreading Force (EN 13204): 48 kN / 10,791 lbf

• Spreading Distance: 281 mm / 11.1 in

• Max. Cutting Opening: 196 mm / 7.7 in

• Theoretical Cutting Force: 268 kN / 60,249 lbf

• Max. Squeezing Force: 44 kN / 9,892 lbf

• Protection Rate: IP57

• Weight (Excl. Battery): 12.2 kg / 26.9 lb

• Weight (Ready for Use): 13.8 kg / 30.4 lb

• Dimensions (L x W x H): 677 x 270 x 275 mm / 26.7 x 10.6 x 10.8 in

• Compliance: EN 13204 (BK48/281E-13.8), NFPA 1936 (A5 B5 C5 D6 E4 F3)

• Cutting Capacity: Round bar (S235) up to 24 mm / 0.9 in

Accessories:

• Battery: PBPA287

• Battery Chargers:

  • PBCH2 (AC-US)

  • PBCH3 (DC)

• Diagnostic Tools:

  • Tool Diagnostic Cord (PTDC1)

  • Battery Diagnostic Tool (PBDT1)

• Mains Power Connector: PMC2 (US)

Looking for a different size combi tool?

IPS also offers the PCT14 – a mid-size Pentheon combi tool that offers increased power and reach while maintaining easy maneuverability.

Contact IPS to compare features and find the best fit for your department's rescue needs.

Shipping Restriction: This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.
