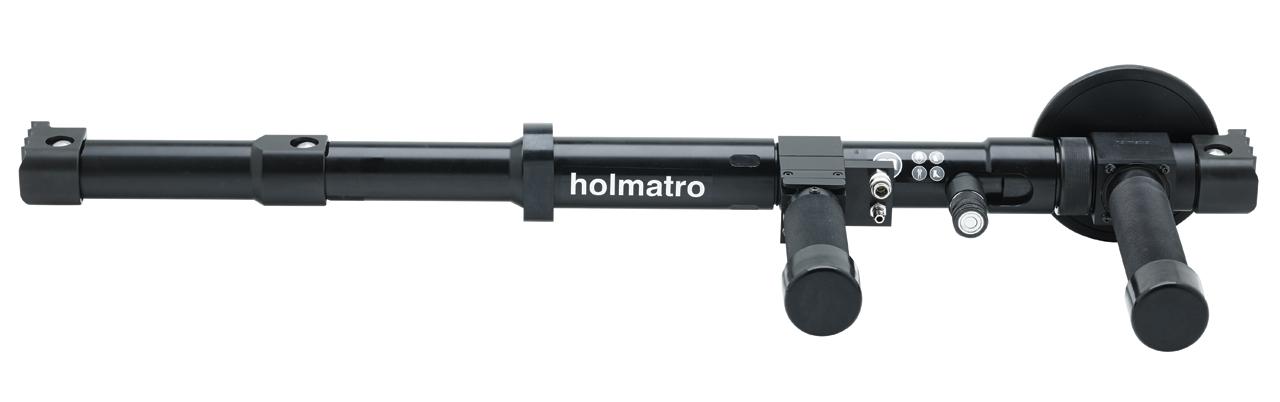

Holmatro Door Blaster HDB 90 ST
Rapid, Silent, Remote Door Breaching—Engineered for Special Tactics

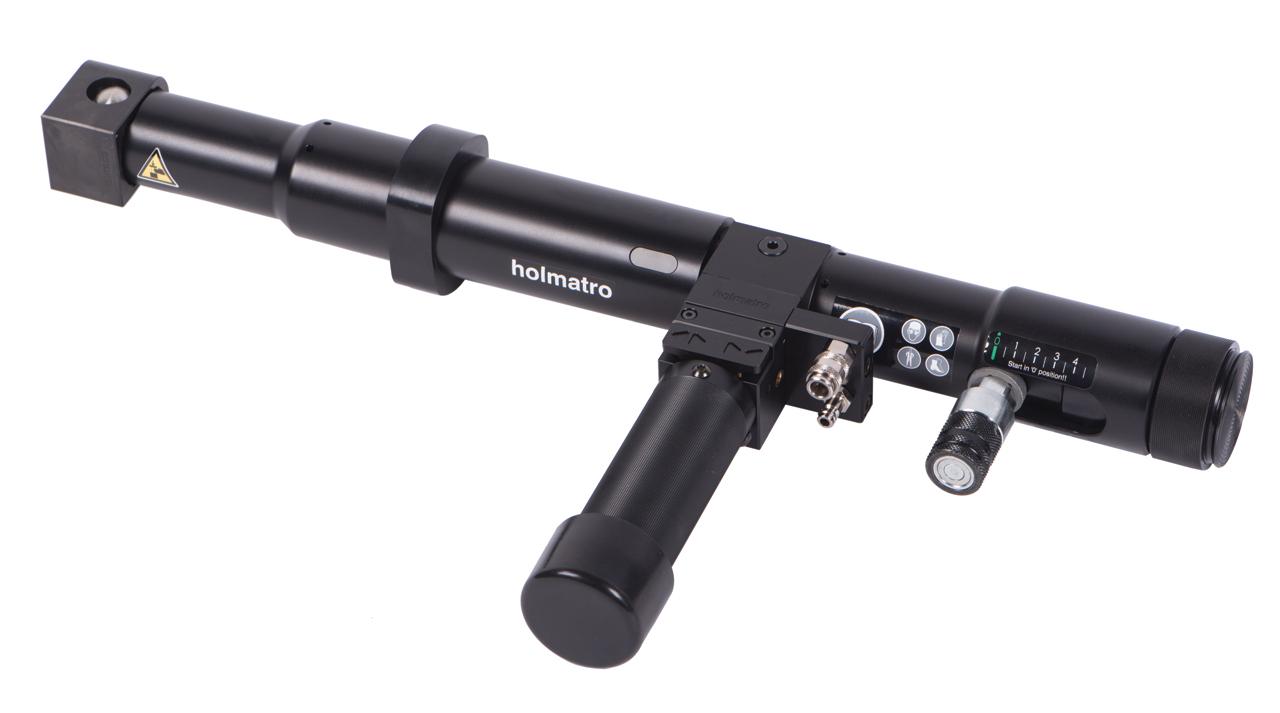

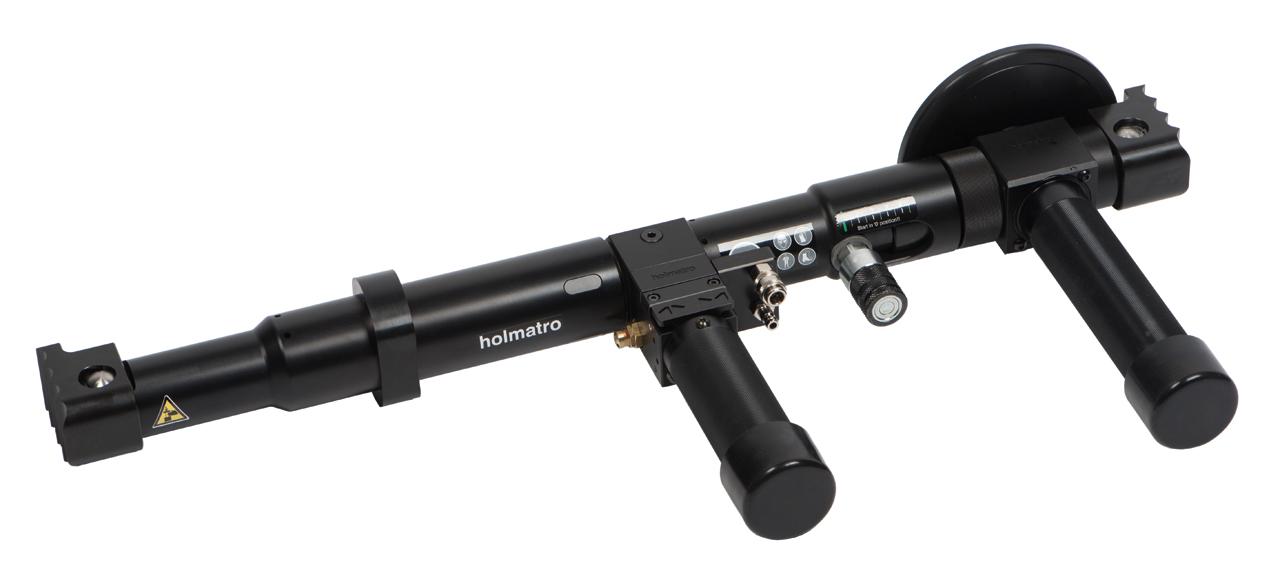

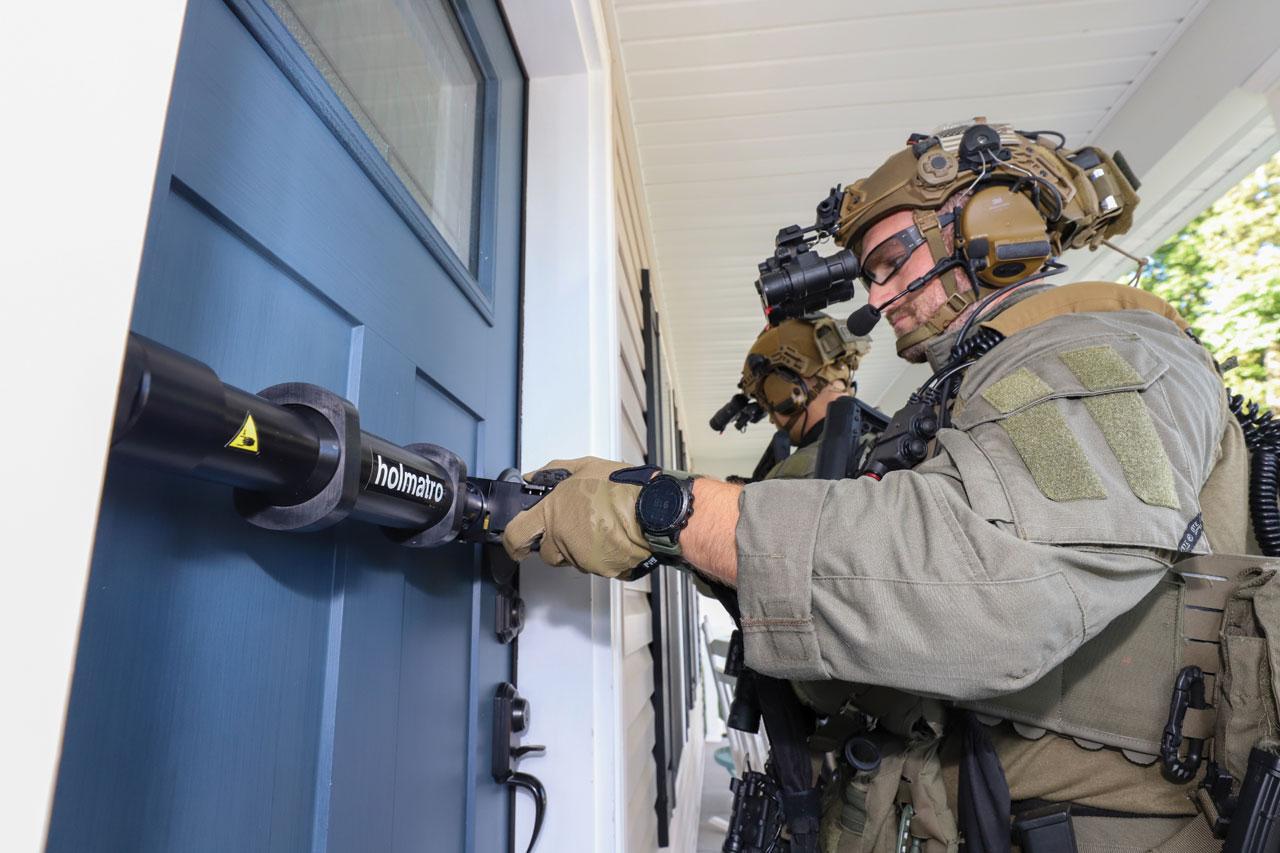

The Holmatro HDB 90 ST is a cutting-edge hydraulic door breaching tool designed for swift and silent entry into high-resistance, inward-opening doors with multiple locks. Its compact and lightweight design allows for single-operator deployment, while the pneumatic-hydraulic drive ensures quiet operation, making it ideal for tactical missions where stealth and speed are paramount.
Key Features:
Powerful & Efficient
Generates up to 11,465 lbf of spreading force and 8,543 lbf of pushing force.
Opens doors in seconds, matching the speed of explosive breaching without the associated risks.
Silent Operation
Pneumatic-hydraulic system operates quietly, minimizing noise during deployment.
Single-Operator Friendly
Weighs just 23.8 lb, allowing for easy transport, installation, and operation by one person.

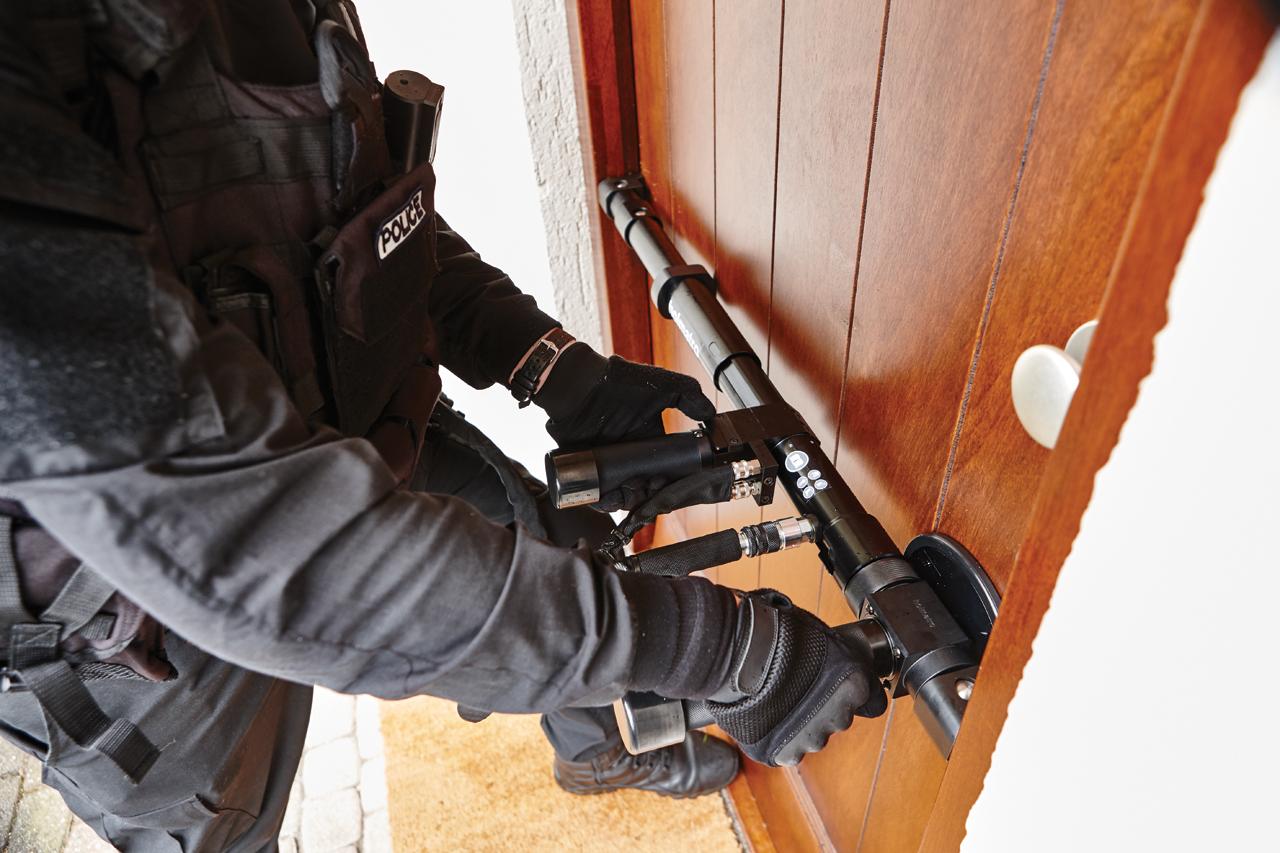

Push-button clamping mechanism enables quick and secure attachment to door frames.
Remote Activation

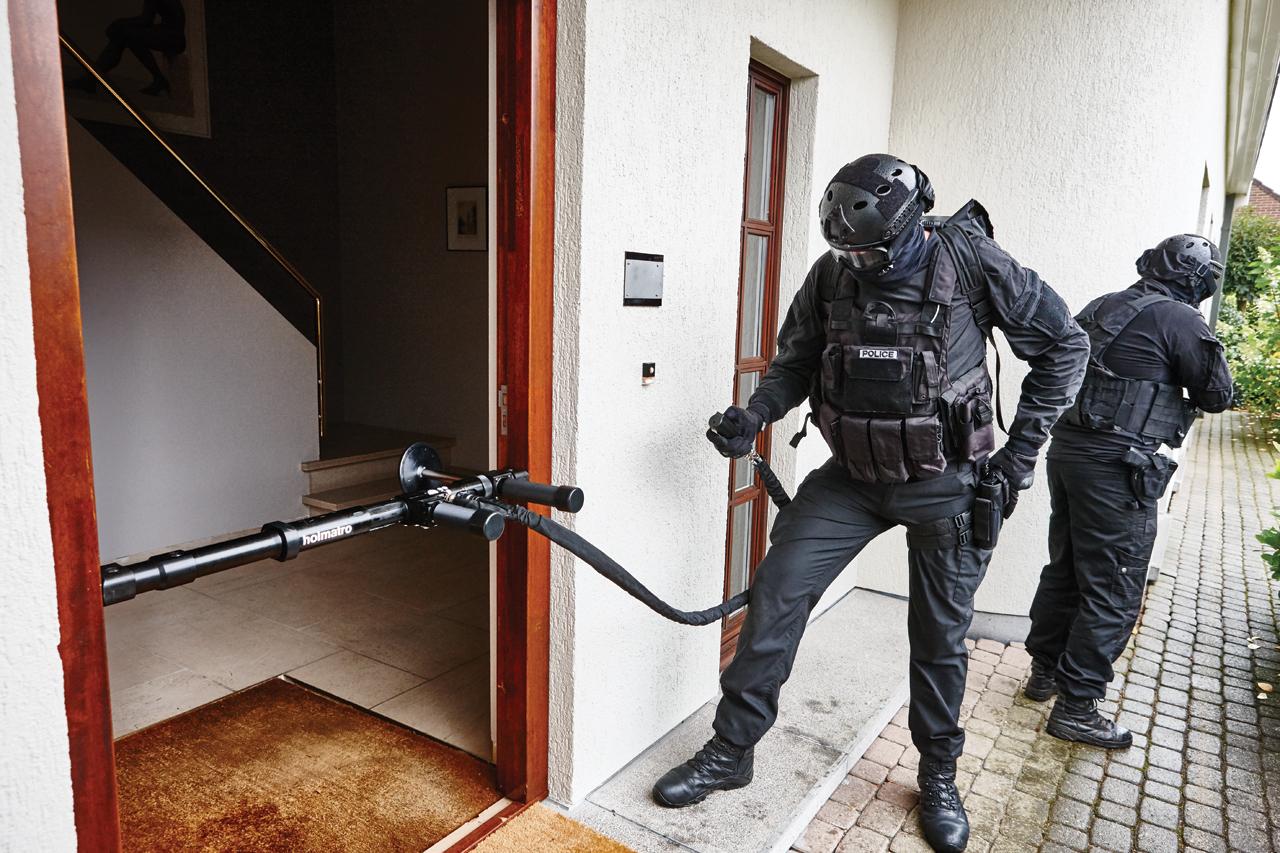

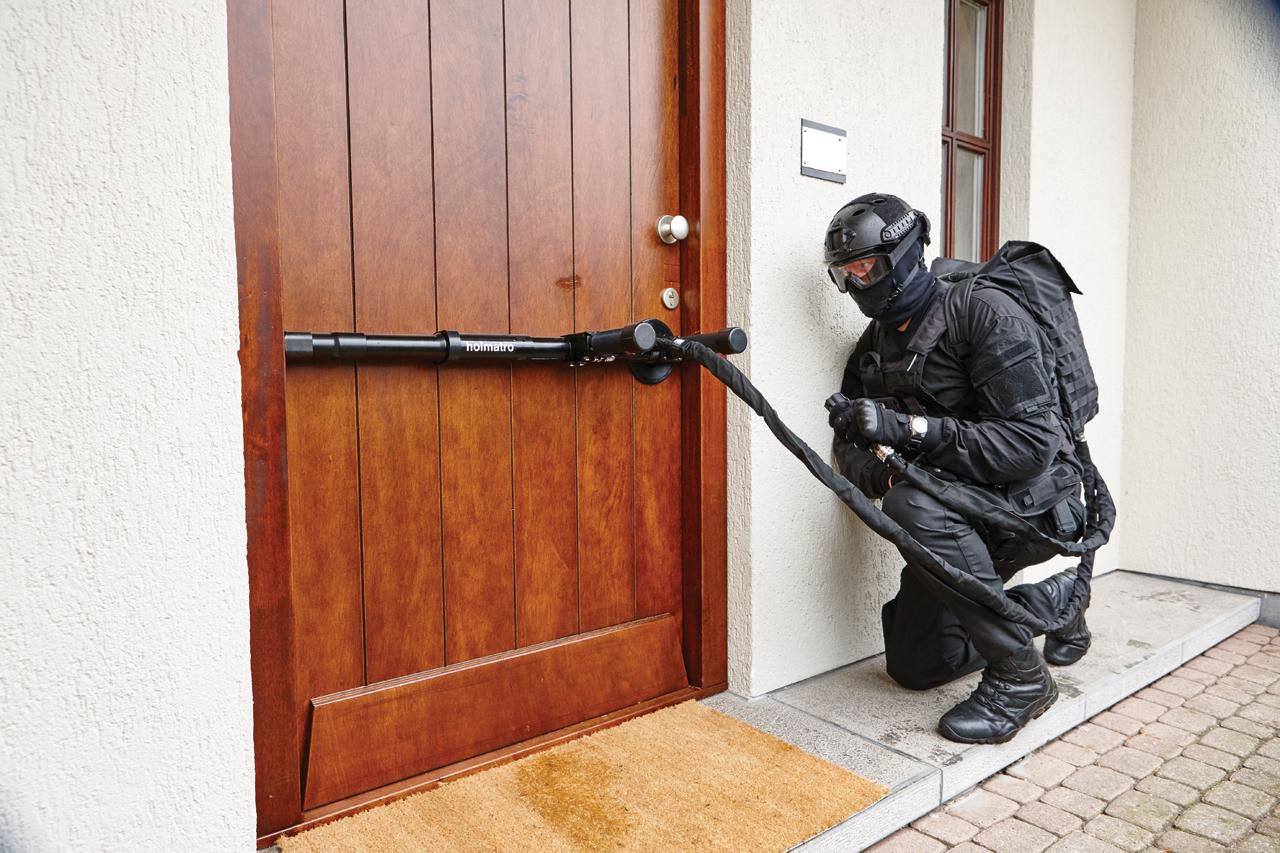

Can be operated via a mounted control on a 2 m (6.5 ft) hose or an optional Wireless Control Set with a range of up to 328 ft (100 m), enhancing operator safety.
Repetitive Use
Designed for multiple breaching operations without interruption.
Technical Specifications:
Model: HDB 90 ST
Article Number: 150.006.850
Max. Working Pressure: 720 bar / 10,443 psi
Max. Spreading Force: 51 kN / 11,465 lbf
Max. Pushing Force: 38 kN / 8,543 lbf
Spreading Stroke: 40 mm / 1.6 in
Max. Length (Excl. Extensions): 930 mm / 36.6 in
Max. Length (Incl. Extensions): 1,230 mm / 48.4 in
Weight (Ready for Use): 10.8 kg / 23.8 lb
Dimensions (L × W × H): 760 × 300 × 85 mm / 29.9 × 11.8 × 3.3 in
Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)
Standard Accessories:
Round Pushing Plate (DBP 12)
Rectangular Pushing Plate (DBP 14)

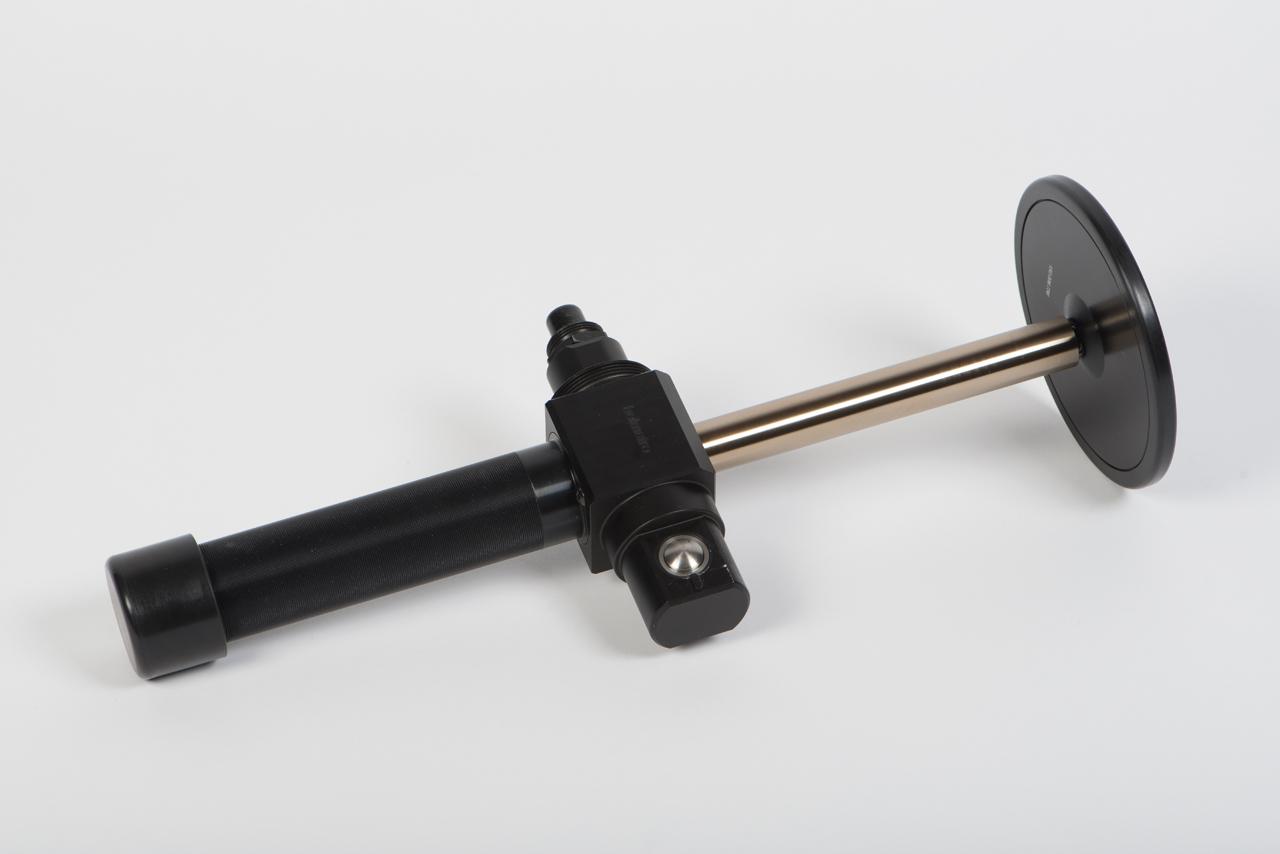

Extension Pieces:
DBE 01 (100 mm / 3.9 in)
DBE 02 (200 mm / 7.9 in)
DBE 03 (50 mm / 2 in)
Grip Heads:
DBH 21 (Square with coarse profile, set of 2)
DBH 23 (With extra-long tooth, set of 2)
DBH 24 (For UPVC doors, set of 2)
Carrying/Storage Bag (DBC 01)
Optional Accessories:
Wireless Control Set (WCS02): Enables remote operation up to 328 ft (100 m).

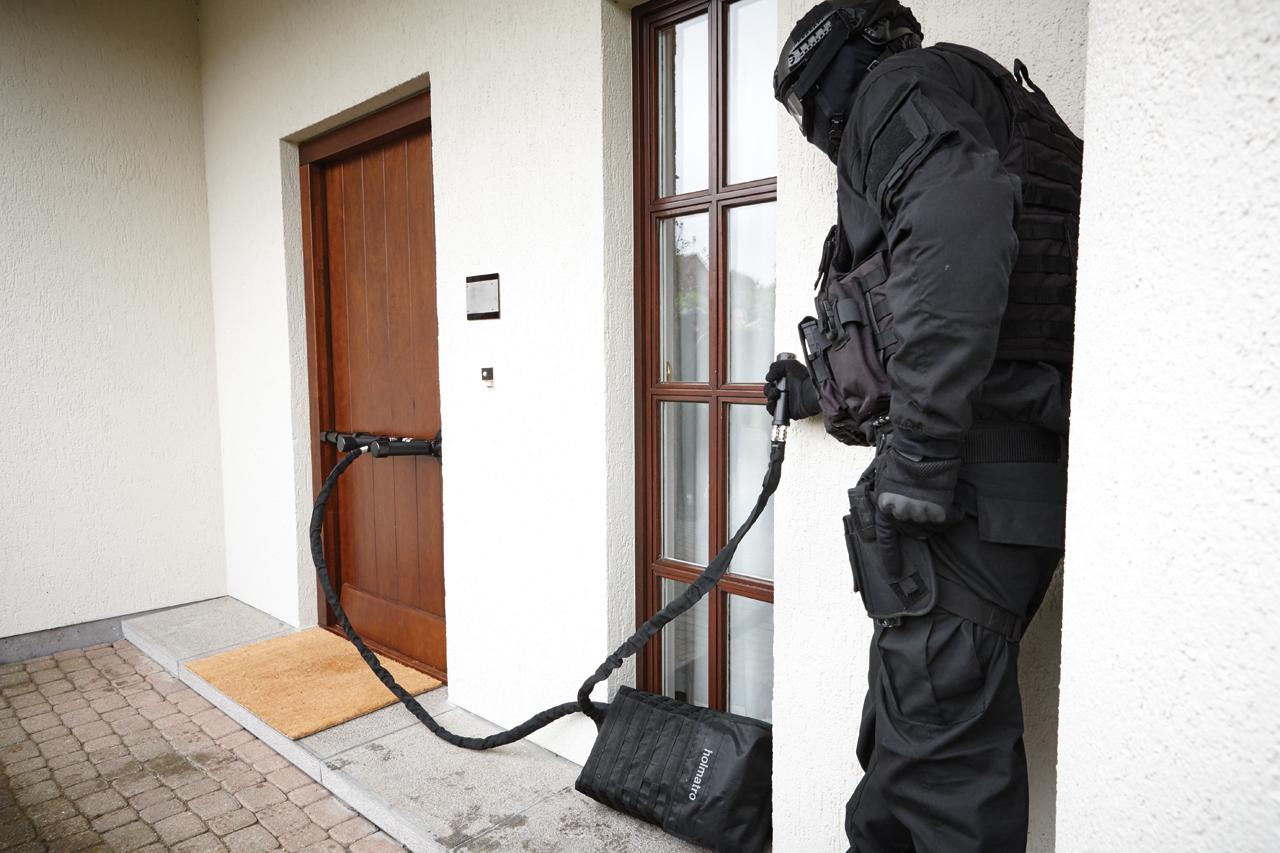

Door Blaster Pack HDB P 240 ST (WO): Includes pump, air bottle, and converter in a practical backpack.
Air Bottle HAB 02 ST: 0.5-gallon capacity, max pressure of 2,901 psi.
Battery Charger BCH12: For charging the Wireless Control Set.
