Product information "Holmatro - TR 5370 LP Telescopic Ram"

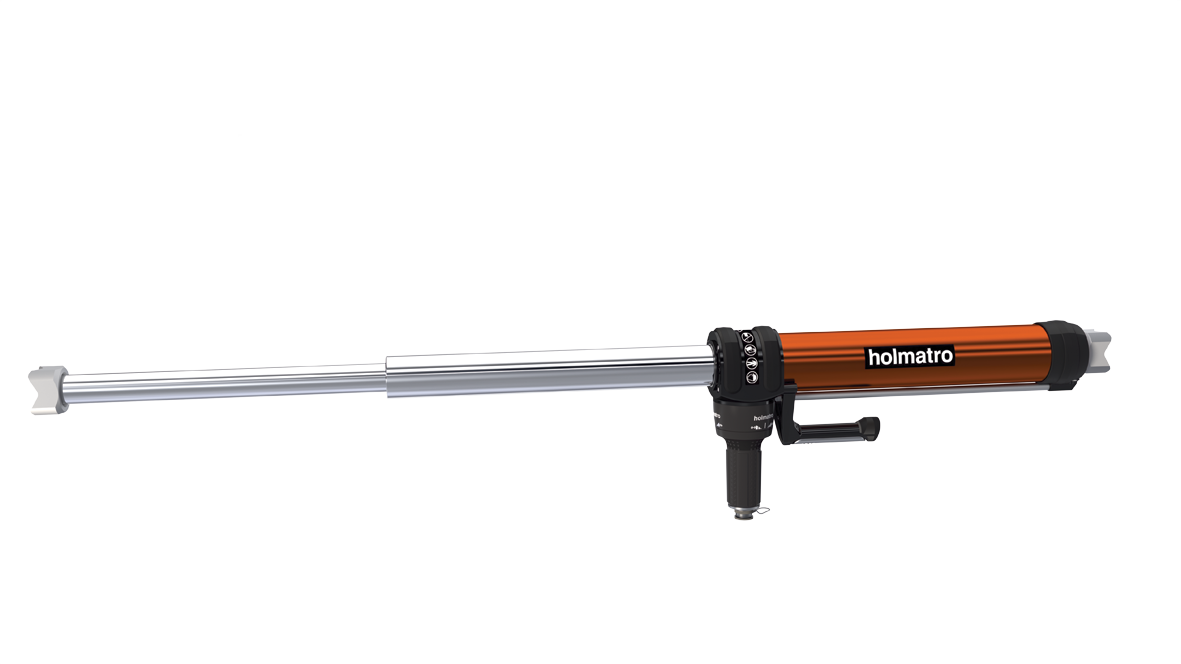

Holmatro TR 5370 LP Telescopic Ram
Compact Profile. Powerful Lifting Force. Built for Real-World Rescue.
The Holmatro TR 5370 LP is a low-profile telescopic ram designed to deliver maximum performance in space-restricted extrication and rescue operations. Its dual-piston telescoping system provides tremendous pushing force across two stages, giving rescuers the reach and power they need to safely create critical space in modern vehicles and structural collapses.
With its ultra-compact body, CORE Technology for faster and safer connections, and rugged build quality, the TR 5370 LP is built for the toughest real-world rescue conditions.
Key Features:
Low-Profile Design: Engineered for tight vehicle interiors and confined collapse spaces.
Two-Stage Telescoping Action: Provides maximum extension without the bulk, delivering controlled force throughout both stages.
CORE Technology:
Integrated high-pressure/return line in a single hose for faster deployment and safer operation.
Easy coupling/uncoupling even under pressure.
Integrated LED Lighting: Bright lights built into the carrying handle improve visibility in low-light or nighttime operations.
Ergonomic Carrying Handle: Designed for optimal grip and balanced carrying comfort.
Durable & Fireground-Tough: Built to handle the harshest rescue environments.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | TR 5370 LP |
| Article Number | 150.012.215 |
| Max. Working Pressure | 720 bar / 10,440 psi |
| Closed Length | 490 mm (19.3 in) |
| Extended Length | 1,244 mm (49 in) |
| Total Stroke | 754 mm (29.7 in) |
| Stroke (1st Plunger) | 385 mm (15.2 in) |
| Stroke (2nd Plunger) | 369 mm (14.5 in) |
| Max. Spreading Force (1st Plunger) | 136 kN (30,566 lbf) |
| Max. Spreading Force (2nd Plunger) | 59 kN (13,262 lbf) |
| Dimensions (L × W × H) | 490 × 227 × 171 mm (19.3 × 8.9 × 6.7 in) |
| Weight (Excluding Hose) | 16.9 kg (37.3 lb) |
| Weight (Ready for Use) | 18.1 kg (39.9 lb) |
| Protection Rating | IP54 |
Related Low-Profile Telescopic Rams Available:
IPS also offers additional Holmatro low-profile telescopic ram models to meet your department's specific needs:
TR 5340 LP:
Closed Length: 346 mm (13.6 in)
Extended Length: 823 mm (32.4 in)
Total Stroke: 477 mm (18.8 in)
Lighter and more compact for ultra-tight spaces.
TR 5350 LP:
Closed Length: 420 mm (16.5 in)
Extended Length: 1,045 mm (41.1 in)
Total Stroke: 625 mm (24.6 in)
A mid-range option balancing compact size and greater reach.
Contact IPS today to find out which Holmatro low-profile ram is best suited for your department’s rescue operations!
Important Note:
Requires a Holmatro CORE Technology hydraulic pump and CORE extension hoses (sold separately) for operation.
Shipping Restriction:
This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.
| Category: | Extrication Equipment |
|---|
