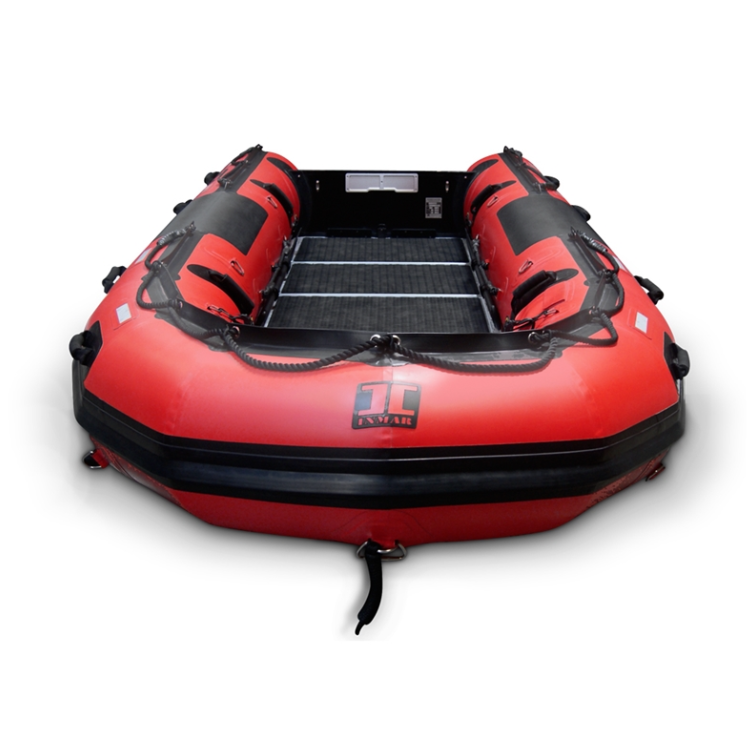

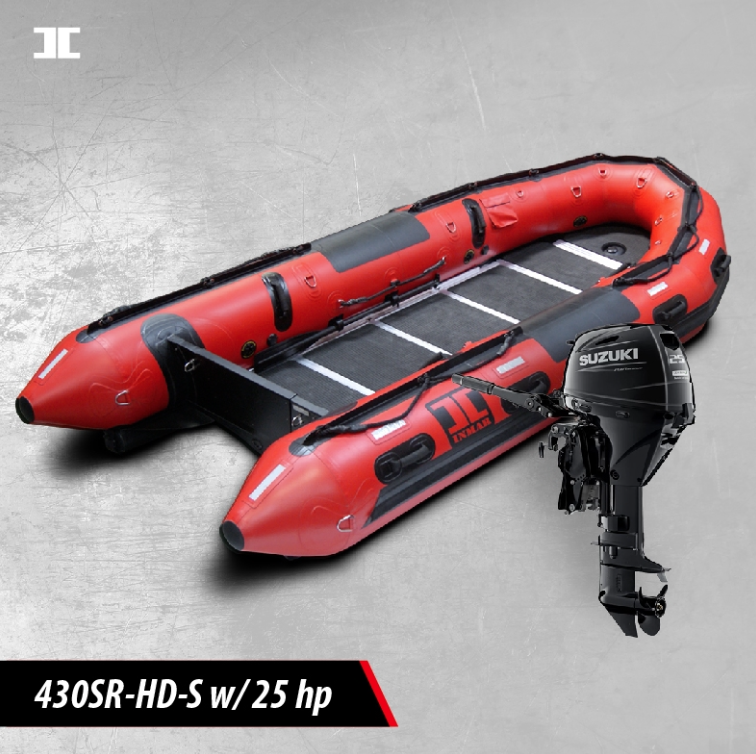

Inmar - Aluminum Floor - 430-SR-HD-S (14' 0") INMAR Mehler Search & Rescue Inflatable Boat
Product information "Inmar - Aluminum Floor - 430-SR-HD-S (14' 0") INMAR Mehler Search & Rescue Inflatable Boat"
The INMAR 430 in its HD / SR-HD configuration combines a rigid aluminum non-skid floor with heavy-duty tubing, rescue-ready fittings, and a high payload capacity — making it ideal for fire / rescue, patrol, dive, and government mission profiles.
Key Features & Benefits

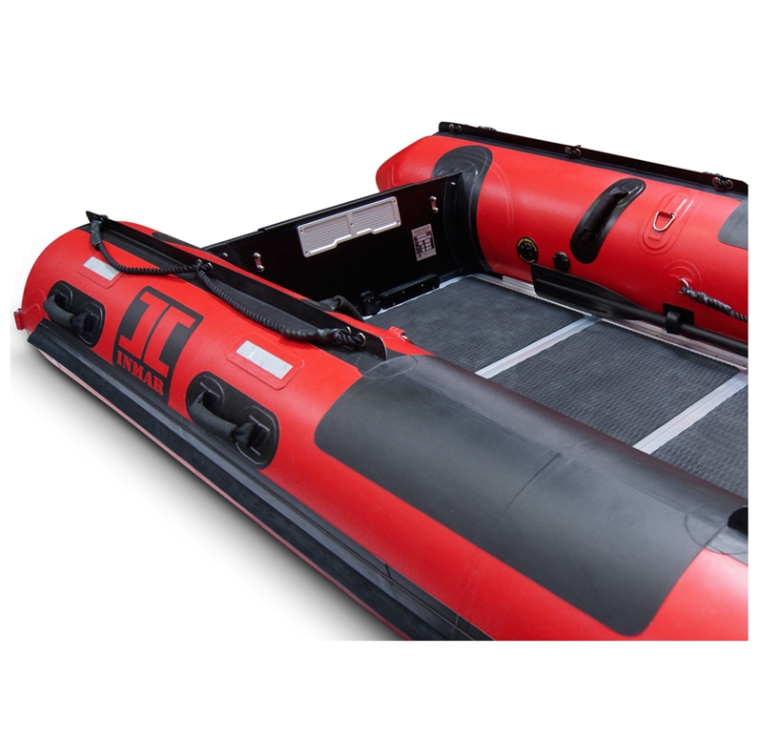

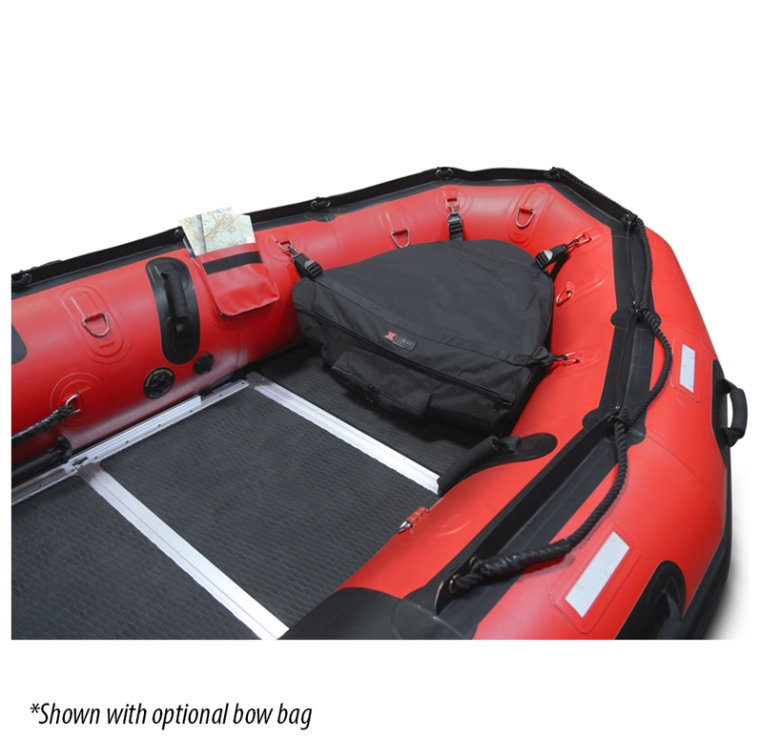

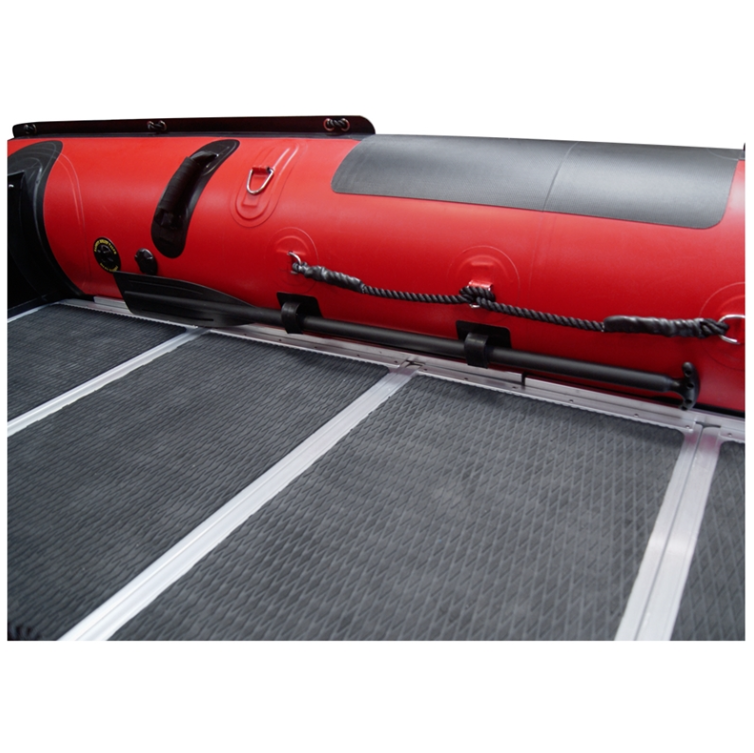

Rigid Aluminum Floor — The sectional non-skid aluminum floor and anodized stringers deliver structural stability, durability, and firm footing in challenging conditions.
High Load Capacity — Rated for 8 persons and 2,395 lb payload, providing space for crew, equipment, and rescue load.
Strong Power Envelope — Accepts up to 40 HP outboards (long & short shaft) with safe operation in the 30 HP range.
Tough Tubing & Seams — Built with Mehler / high-performance fabric, RF welded seams, and temperature tolerance from –30 °C to +70 °C.
Multiple Air Chambers (5 + Keel) — Ensures redundancy in floatation and safety.
Standard Rescue / Utility Features
• Fiberglass transom with engine mounting pad
• Reinforced tube-to-transom attachments
• Pop-up self-bailers (with optional high-flow scuppers)
• Rub strake and tube reinforcements for beaching
• Exterior / interior lifelines, D-rings, tow rings, handles
• Repair kit, foot pump, paddles, storage bags included

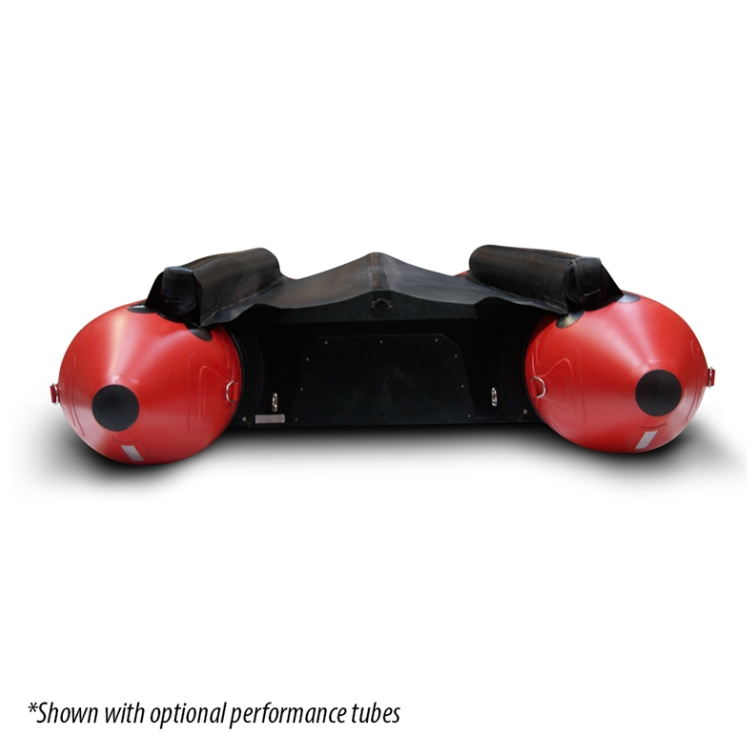

• Optional performance tube upgrades for speed / maneuverability
Specifications (Standard 14′ 0″ Model)
| Parameter | Value |
|---|---|
| Length (LOA) | 14′ 0″ |
| Beam | 6′ 5″ |
| Weight (with floor) | ~ 285 lb |
| Payload (persons / lbs) | 8 persons / 2,395 lb |
| Tube Diameter | 20″ |
| Max HP | 40 HP |
| Recommended / Typical HP | 30 HP |
| Seams / Fabric | RF welded, Mehler fabric, –30 °C to +70 °C rating |
| Category: | Rescue Boats |
|---|
