Inmar - Dive & Rescue - 520R-DR (17' 6") INMAR Dive / Rescue (Rigid Hull) Inflatable Boat + Suzuki DF75ATL Motor
Product information "Inmar - Dive & Rescue - 520R-DR (17' 6") INMAR Dive / Rescue (Rigid Hull) Inflatable Boat + Suzuki DF75ATL Motor"

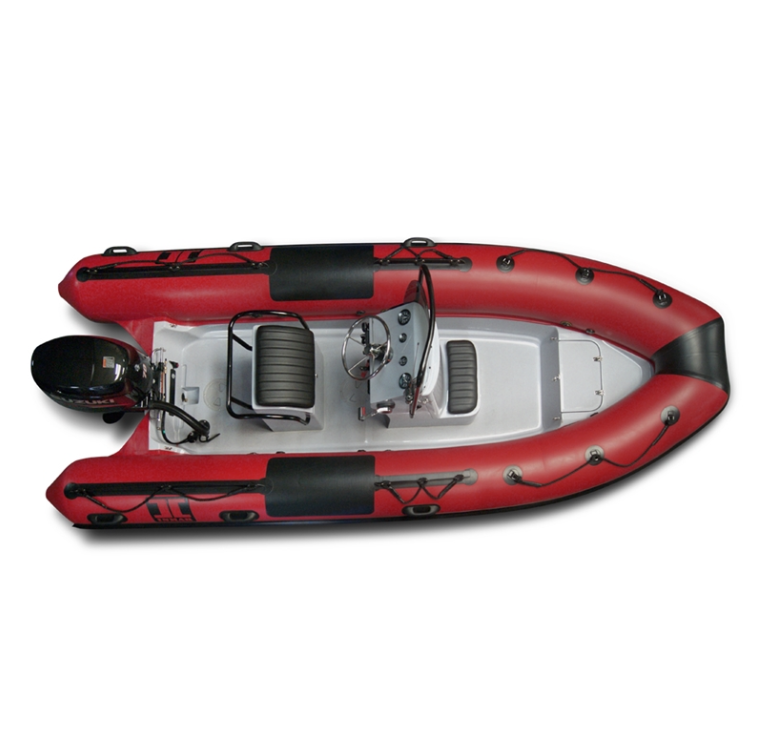

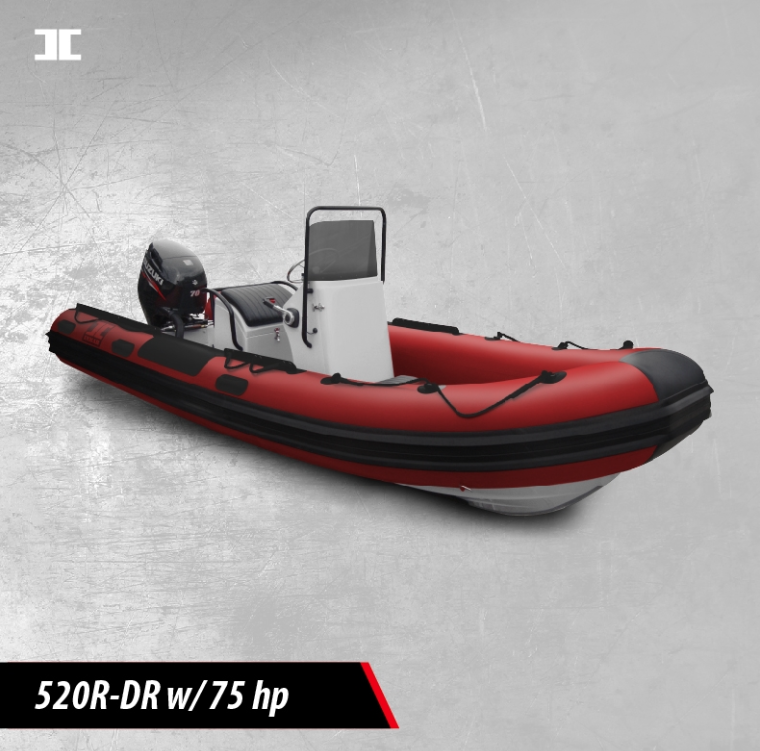

The 520R-DR Dive & Rescue series delivers a purpose-built platform engineered for demanding operations, combining durability, performance, and readiness. This turn-key package blends a rugged rigid hull with high-strength inflatable tubes and a powerful Suzuki outboard motor to provide a mission-ready craft straight from the factory.
At 17′ 6″ in length with a 6′ 8″ beam, the hull offers stability and handling in diverse water conditions. The lightweight aluminum construction integrates perfectly with six-chamber Hypalon tubes (20″ diameter) for maximum buoyancy and safety margins. With a dry weight of approximately 980 lb and capacity for 8 people (2,350 lb), this vessel balances performance capability with operational flexibility.

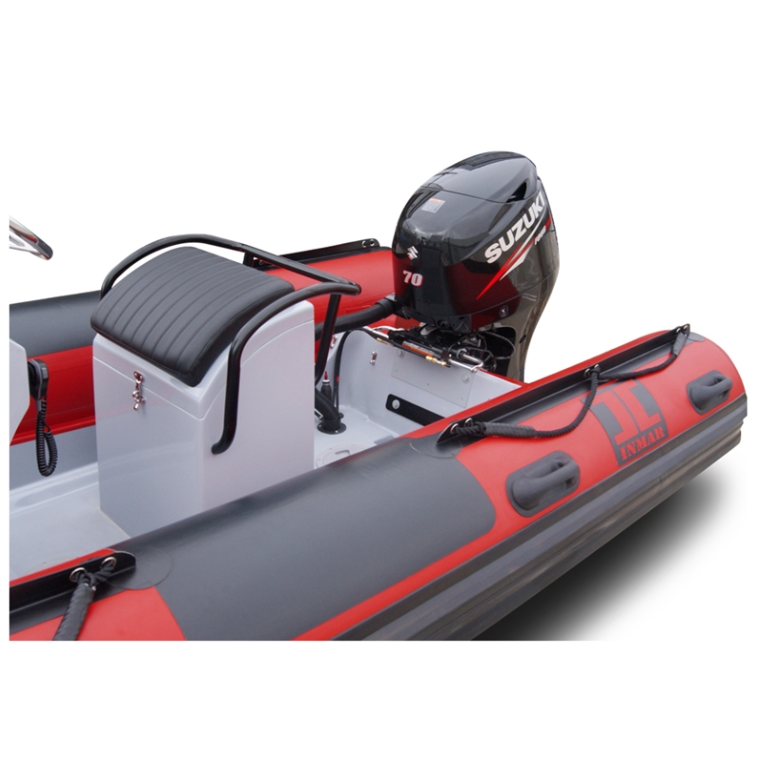

The included Suzuki DF75ATL long-shaft (20") engine features electric start, hydraulic steering, and a multi-function gauge, ensuring responsive control and clear system feedback. The package is outfitted with navigation lights, VHF radio, bilge pump, stainless-steel 3-blade propeller, and a 26-gallon aluminum fuel tank (enabling extended range under power). Whether deployed in search-and-rescue, dive support, patrol, or emergency response roles, the 520R-DR package is engineered to meet the demands of the mission.
Highlights & Specs
Overall Length / Beam: 17′ 6″ × 6′ 8″
Dry Weight: ~980 lb
Personnel Capacity: 8 people / 2,350 lb total load
Max Engine Rating: 75 hp long-shaft (20")
Fuel Tank: 26 gal aluminum

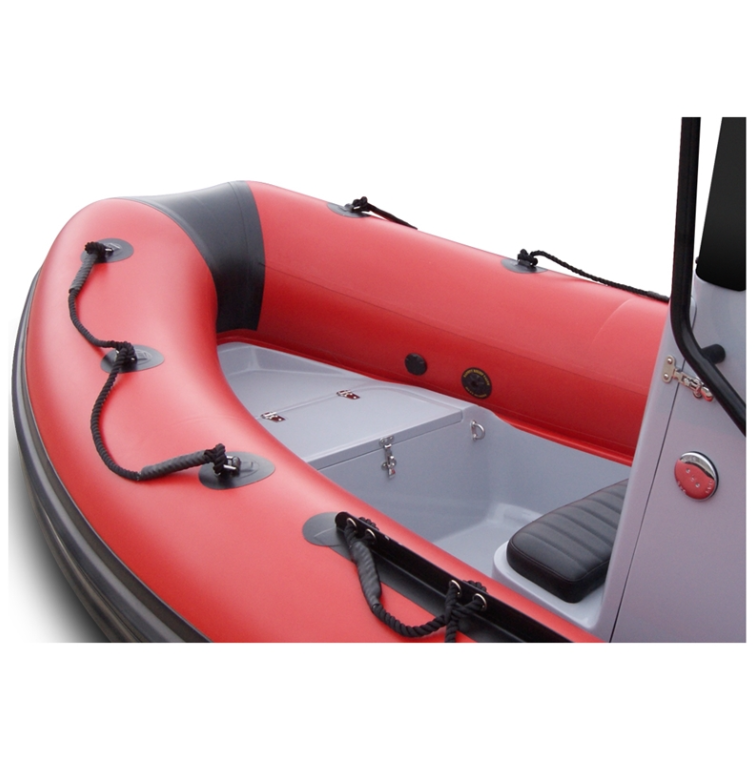

Tube / Hull: 6-chamber Hypalon tubes (20″ diameter) + rigid aluminum hull
Standard Equipment: VHF radio, bilge pump, navigation lights, stainless 3-blade prop, multifunction engine gauge, hydraulic steering
Use Case: Dive/rescue, patrol, emergency & first-responder deployment
| Category: | Rescue Boats |
|---|
