JUNK YARD DOG - SMALL ZSTRUT STYLE RESCUE STRUT SET

The Small ZSTRUT Style Rescue Strut Set revolutionizes stabilization operations by replacing traditional pin-based systems with an intuitive, quick-locking collar. This design enables rapid, precise deployment — often by a single rescuer — without the need for bulky cribbing or excessive hardware.

Operating on the “tension buttress” principle, each strut is self-contained and engineered for speed, control, and reliability. The collar mechanism allows you to pull up to extend, rotate for fine adjustment, and pull up again to retract — eliminating the need for external adjustment pins.

All essential accessories (heads, pickets, straps, pouches) are permanently attached, so responders can deploy straight from the unit without gathering separate components. With a compact, lightweight footprint, this strut set is optimal for cramped environments, tight access zones, or vehicles with restricted clearance.

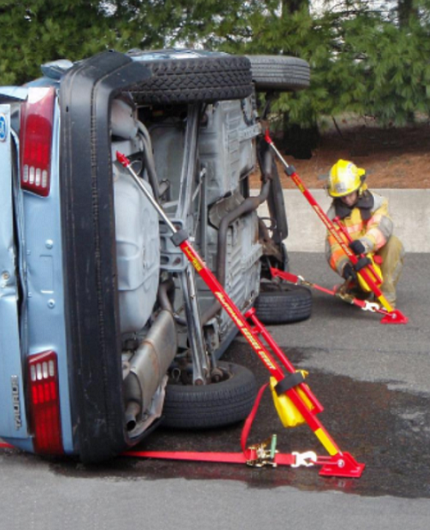

Whether stabilizing small vehicles, reinforcing structure, or supporting extrication, the Small ZSTRUT set delivers a dependable, fast, and mission-focused solution in compact form.

Highlights & Specs

• Adjustment System: Proprietary quick-locking collar (no pin)

• Construction:
    • 4-gauge solid-wall steel outer tube
    • Inner 304 stainless steel threaded rod
    • Powder-coated finish for durability

• Retracted / Extended Length: 27″ up to 42″

• Weight (each, fully equipped): 24 lb

• Working Load Rating: Rated for up to 5,000 lb (third-party tested)

• Accessories & Components Included:
    • (2) Small ZSTRUT rescue struts
    • (2) Witch’s-hat / point heads
    • (2) 90° heads
    • (2) Accessory pouches
    • (2) Pickets
    • (2) Simpson ratchet straps (1,300 lb rating)
    • (2) Simpson axle straps

• Functional Features:
    • Polymer-coated base for better ground grip
    • Base and clevis articulate independently, so the base stays flat under load
    • Large clevis opening allows the strap head to pass through for single-line triangulation
    • Infinite adjustment via threaded rod & collar design
