Rae Systems - AreaRAE Pro

Note: Call for pricing and custom sensor configuration. IPS offers full support in selecting the right model and gas sensors for your application.

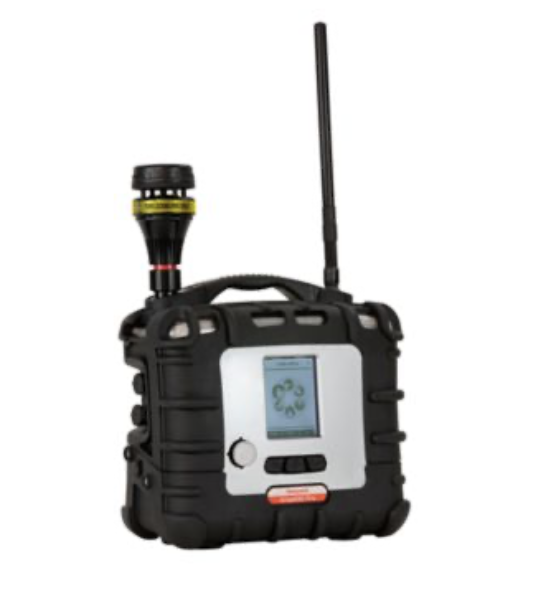

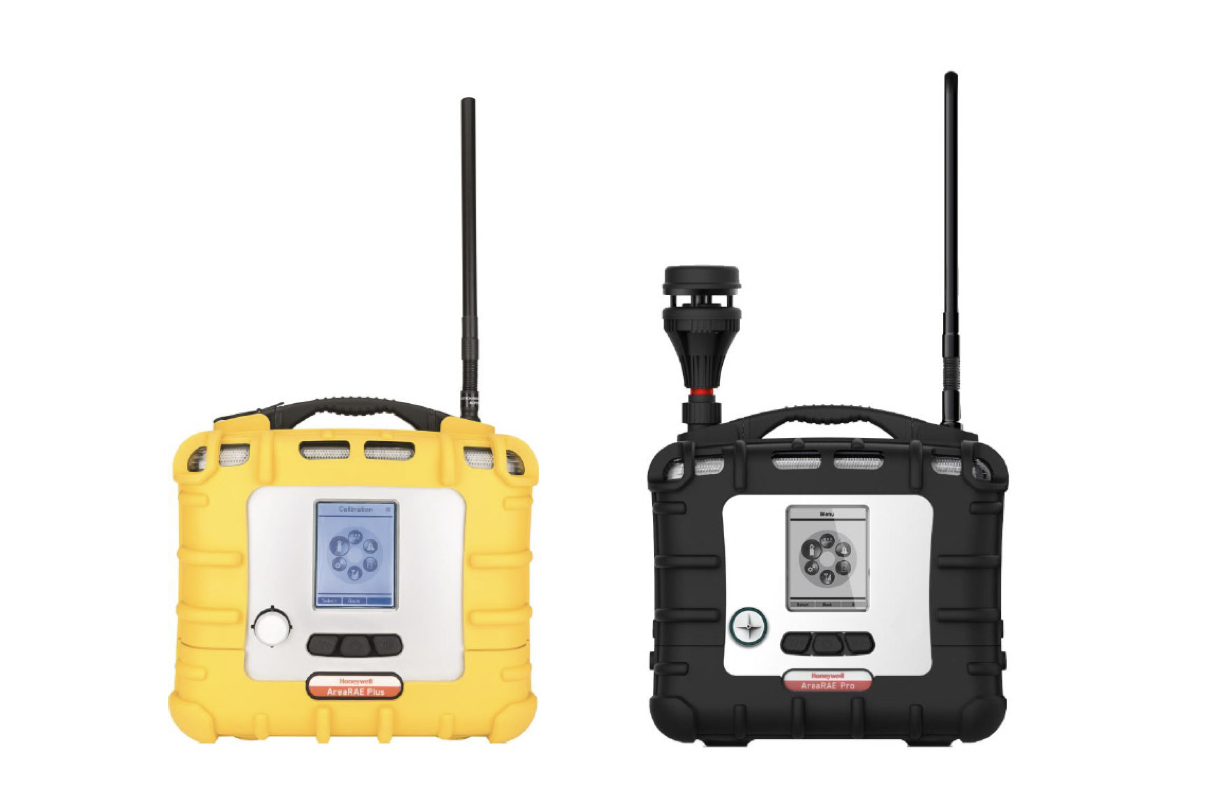

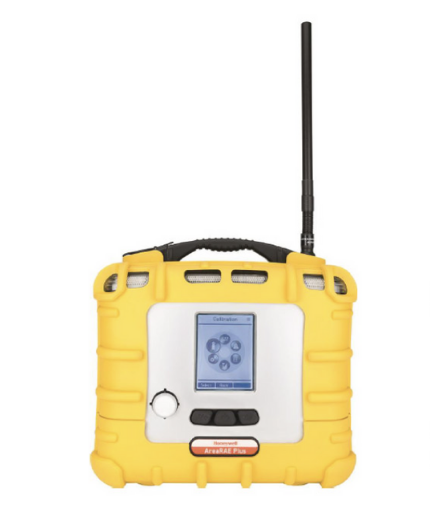

The Honeywell AreaRAE Pro is a versatile, transportable area monitor designed to provide real-time, simultaneous detection of multiple threats, including toxic and combustible gases, volatile organic compounds (VOCs), gamma radiation, and meteorological factors. Engineered for rapid deployment and remote monitoring, it delivers critical data to emergency responders, hazmat teams, and industrial safety professionals to enhance situational awareness and decision-making.​

Key Features:

• Multi-Threat Detection: Capable of monitoring up to seven threats simultaneously, including VOCs, combustibles, toxics, oxygen levels, and gamma radiation, providing comprehensive hazard assessment. ​

• Interchangeable Sensor Options: Supports over 20 interchangeable sensors, allowing customization based on specific operational requirements and enabling quick adaptation to changing environments. ​

• Advanced PID Sensor: Equipped with a 7R+ photoionization detector for VOC detection at parts-per-billion (ppb) levels, with built-in temperature and humidity compensation for accurate readings. ​

• Meteorological Monitoring: Optional RAEMet sensor measures wind speed, wind direction, temperature, and humidity, aiding in the assessment of gas plume behavior and dispersion. ​

• Wireless Connectivity: Features integrated ISM and Wi-Fi radios for long-range (up to 2 miles / 3 km) and short-range mesh networking, facilitating real-time data transmission to command centers. ​

• GPS Integration: Built-in GPS module provides location data for each monitor, enhancing situational awareness and enabling efficient resource deployment. ​

• Robust Design: Rugged construction with a protective rubber boot ensures durability in harsh environments, while the large, backlit LCD display offers clear visibility of readings. ​

• Extended Operation: Rechargeable Li-ion battery offers approximately 20 hours of continuous operation with wireless connectivity, supporting prolonged field deployments. ​

Specifications:

• Dimensions: 12.36" x 12.04" x 6.53" (314 x 306 x 166 mm)​

• Weight: Approximately 13.88 lbs (6.3 kg) with full sensor configuration​

• Sensor Slots: Up to 7, accommodating a combination of toxic gas, combustible gas, VOC, and radiation sensors​

• Display: 240 x 320 pixel LCD with backlight for enhanced readability​

• Battery: Rechargeable 7.2 V / 10 Ah Li-ion battery pack with built-in charger; optional alkaline battery adapter available​

• Operating Temperature: -4°F to 140°F (-20°C to 60°C)​

• Humidity Range: 10% to 95% RH (non-condensing)​

• Wireless Communication: ISM (900/2400 MHz), Wi-Fi, and Mesh networking capabilities​

Applications:

• Hazardous Materials (HazMat) Response​

• Fireground Operations​

• Public Venue Protection​

• Industrial Fence-Line Monitoring​

• Environmental Remediation​

• Military and Civil Defense Operations​

The Honeywell AreaRAE Pro stands as a reliable and flexible solution for professionals requiring accurate and immediate detection of hazardous conditions. Its robust design, coupled with advanced sensor technology and wireless capabilities, ensures that safety personnel are equipped with the necessary tools to respond effectively in high-risk environments.​
