Product information "Ready Rack by Groves - Smart-Dry 6 All-Purpose Drying Cabinet"

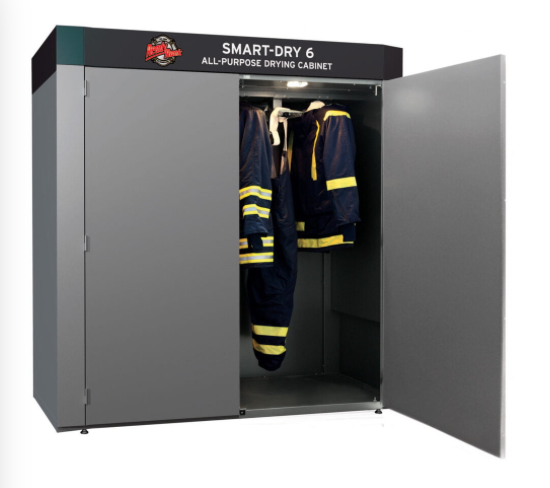

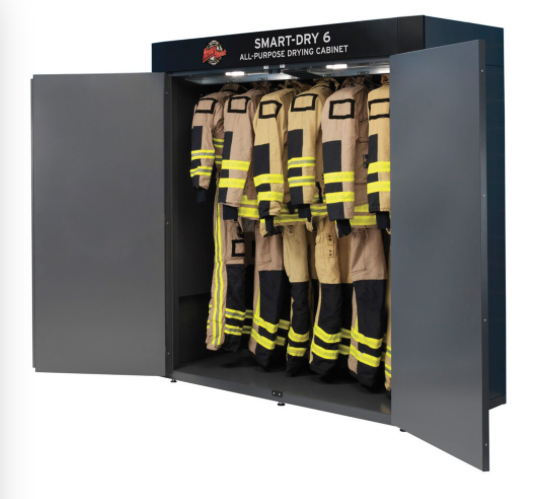

Ready Rack Smart-Dry 6 All-Purpose Drying Cabinet
The Smart-Dry 6 All-Purpose Drying Cabinet is engineered to safely and efficiently dry up to six full sets of turnout gear or other personal protective equipment (PPE). Utilizing a dual circulation system, it dries garments from both the inside and outside simultaneously, ensuring thorough drying without mechanical action that could degrade fabric integrity.Equipped with programmable controls and a Humidity Tracking System (HTS), the cabinet automatically monitors moisture levels and concludes the drying cycle with a cool-down phase to room temperature. This system is NFPA 1851 compliant and is designed to extend the service life of your gear.
Key Features:
Dual Circulation Drying: Simultaneously dries gear from the inside and outside using specially designed Air Flow Coat Hangers.
Programmable Controls: Simple interface with preset programs tailored for various PPE items.
Humidity Tracking System (HTS): Monitors moisture levels and automatically ends the cycle when gear is dry.
Gentle Drying: No mechanical action involved, preserving the integrity of high-performance fabrics.
Cool-Down Phase: Each cycle concludes by cooling gear to room temperature.
Safety Features: Double overheat protection with backup sensors.
Interior Lighting: Illuminates the cabinet for easy loading and unloading.
Adjustable Feet: Allows for leveling from inside the cabinet.
Construction: Powder-coated galvanized steel for durability.
Compliance: Meets NFPA 1851 standards for PPE care.
Product Specifications:
| Specification | Details |
|---|---|
| Model Number | SDC-6 |
| Capacity | 6 sets of turnout gear |
| Dry Weight Capacity | 55 lbs (25 kg) |
| Interior Volume | 73.1 cu ft (2070 L) |
| Drying Capacity | 2 oz/min (55 g/min) |
| Energy Consumption | 6.7 kWh |
| Noise Level | 65 dB(A) |
| Languages Supported | 8 |
| Electrical (3-Phase) | 208–240V, 3ph, 60Hz, 12.45 kW, 40A |
| Electrical (1-Phase) | 208–240V, 1ph, 60Hz, 9.45 kW, 60A |
| Dimensions (W × D × H) | 71″ × 31.5″ × 77″ (1800 × 800 × 1955 mm) |
| Shipping Dimensions | 75″ × 31″ × 42″ (1915 × 790 × 1060 mm) |
| Weight | 441 lbs (200 kg) |
| Shipping Weight | 529 lbs (240 kg) |
| Exhaust Outlet Diameter | 6″ (152 mm) |
| Outlet Airflow | 210 CFM (350 m³/h) |
| Max Airflow (0% Pressure) | 383 CFM (650 m³/h) |
| Pressure Drop (Max) | 4.4 psf (210 Pa) |
Included & Optional Accessories:
| Accessory | Description | Part Number |
|---|---|---|
| Air Flow Coat Hanger | Standard hanger for drying coats and suits | SDCH |
| Air Flow Glove Hanger | Optional hanger designed for drying gloves | SDGH |
| Air Flow Boot Hanger | Optional hanger designed for drying boots | SDBH |
| Door Hook Rack | Optional set of 3 racks with 4 hooks each for accessories | SDDH |
