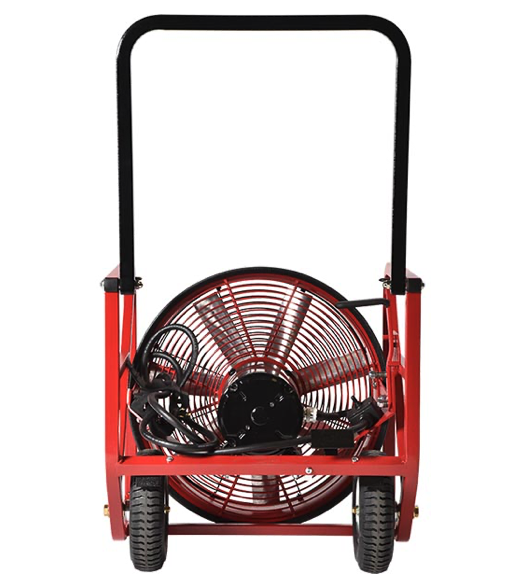

SUPER VAC - 7 SERIES ELECTRIC PPVs - 716E2

Rugged, dependable, and firefighter-proven—give your department the trusted solution for rapid ventilation. The Super Vac 7-Series (16″, 1.0 HP, 1725 RPM) is built to deliver powerful airflow and durability in the tightest apparatus compartments.

Key Features & Benefits

• Time-Tested Steel Roll-Cage Construction
  Built on a robust steel frame with full roll-cage protection, this fan withstands repeated deployment in harsh conditions—earning its reputation as a fire-department favorite.

• Compact Yet Powerful
  The 16″ blade configuration is ideal for compact storage yet delivers serious performance: up to 5,890 CFM(≈10,007 CMH) of airflow, with an 18° tilt and a 6 ft setback giving you flexibility and reach wherever it's needed.

• Reliable Bluffton Motor
  Equipped with a single-speed Bluffton TEAO (Totally Enclosed Air Over) motor, engineered for longevity and reliable operation.

• Optimized Handling & Control

  • 4-Position Tilt Lever: Adjusts between −10°, 0°, 10°, and 20° for precision targeting.

  • Fold-Down Ergonomic Handle: Easily stowed for compact storage and user-friendly even with gloved hands.

  • Flat-Proof Rubber Tires: Never go flat; built to roll smoothly over stairs and rubble.

• Durability Meets Safety

  • Cast Aluminum Blade: More resistant to high heat than plastic alternatives.

  • Precision-Spun Steel Shroud: Designed for maximum airflow and longevity

• Performance Specs

  Specification	Value
  Blade Diameter	16″ (406 mm)
  Dimensions (H×W×D)	20″ × 20.5″ × 16″ (51 × 52 × 41 cm)
  Weight	68 lb (31 kg)
  Airflow	5,890 CFM (10,007 CMH)
  Required Start Power	4,000 W on a 15-amp circuit
  Continuous Run Power	1,500 W
  Tilt Angle	18°
  Setback Distance	6 ft (1.8 m)
  RPM	1,750 RPM (60 Hz)
