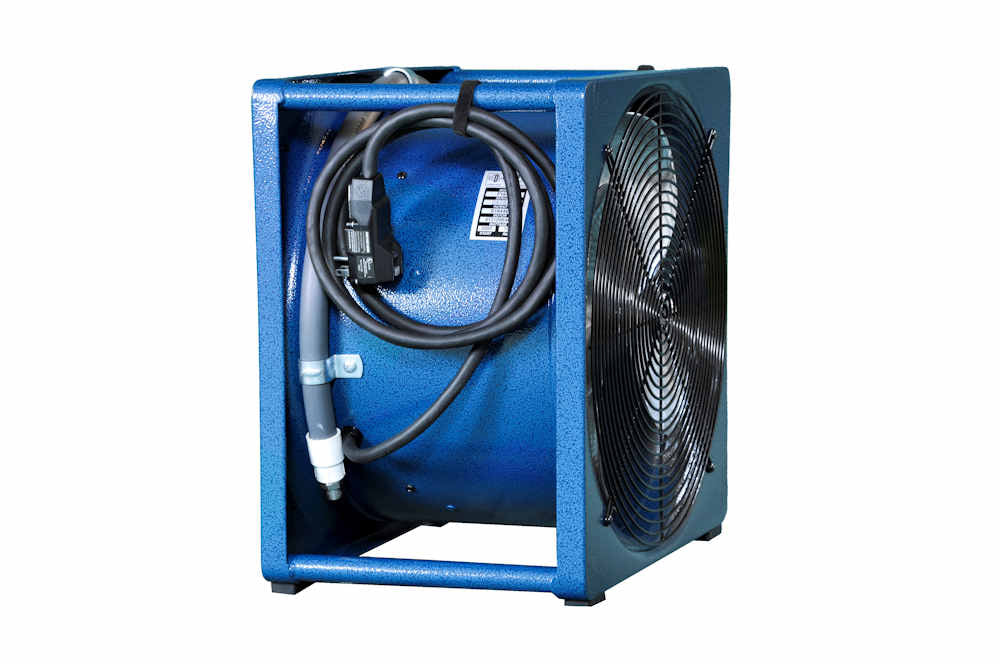

Product information "Supervac - F164M Mister Fan"
Stay cool, stay safe. Designed for firefighter rehab and training, the F164M Mister Fan combines powerful airflow and precision cooling to reduce heat stress—while doubling as a smoke ejector when needed.
Key Features & Benefits
Integrated Misting Power

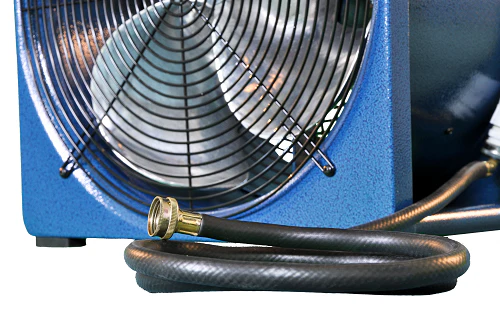

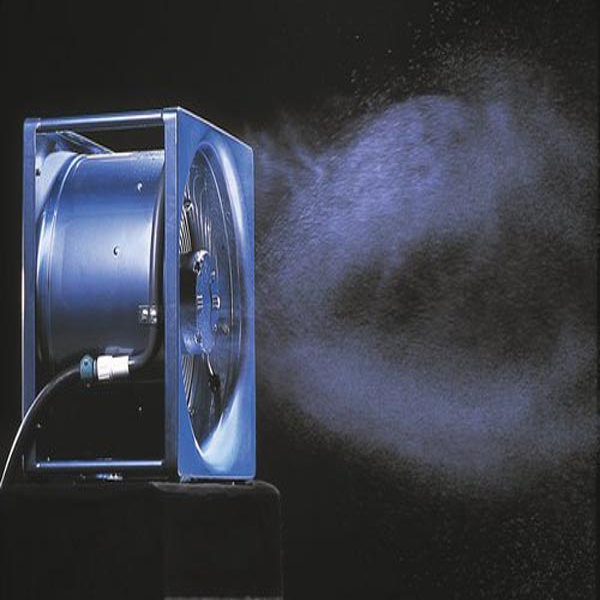

Equipped with three built-in misting nozzles on the discharge side—only 2 gallons of water per hour needed via standard garden hose or apparatus auxiliary line. This mist can lower ambient air temperature by up to 30°F for effective rehabilitation cooling.Dual-Purpose Performance
As potent as the P164S Smoke Ejector, the F164M serves dually as a bona fide smoke ejector when misting isn’t needed, making it a versatile asset on the fireground.Robust And Reliable Build

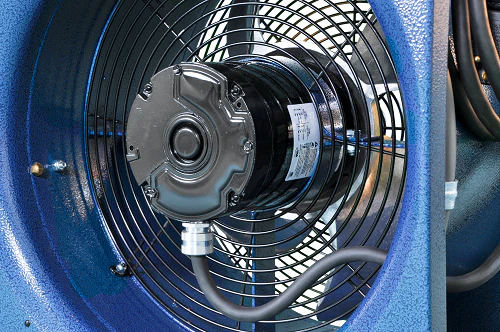

1/3 HP Bluffton TEAO Motor (Totally Enclosed Air Over): dust-tight, shaft-driven design that eliminates belt maintenance.
Patented 4-Tip Recurved Aluminum Blade: creates a tight, heat-resilient spiral of airflow—superior to plastic in demanding conditions.
Precision-Balanced Blade, Heavy-Duty Rubber Feet, and Aluminum Frame: delivers maximum output, stability during operation, and rust resistance.
Portable & Safe Design
Compact footprint: 19.75″ H × 18.75″ W × 13″ D
Lightweight at 41 lb (18.5 kg), with four carry handles for easy transport by one or two people
Equipped with front and rear safety guards to prevent accidental contact with moving parts.
Impressive Airflow Capacity
Shroud Output: 3,200 CFM (≈5,435 CMH)
Venturi Output: 5,200 CFM (≈8,835 CMH)
Operates with a start requirement of 2,000 W (15 A circuit) and a run draw of just 700 W.
Long-Term Assurance
Backed by a 5-year warranty, ensuring durable performance and peace of mind for years to come.
Technical Specifications
| Specification | Detail |
|---|---|
| Blade Diameter | 16″ (406 mm) |
| Dimensions (H × W × D) | 19.75″ × 18.75″ × 13″ (502 × 480 × 330 mm) |
| Weight | 41 lb (18.5 kg) |
| Motor | Bluffton 1/3 HP, single-speed TEAO (115/230 V) |
| RPM | 1,725 RPM |
| Start Power | 2,000 W (15 A circuit needed) |
| Run Power | 700 W |
| Airflow (Shroud) | 3,200 CFM (5,435 CMH) |
| Airflow (Venturi) | 5,200 CFM (8,835 CMH) |
| Water Use | 2 gallons/hour via garden hose |
| Cooling Effect | Reduces ambient stream temperature by up to 30 °F |
| Frame & Blade | Aluminum; rust-resistant |
| Warranty | 5 years |
| Category: | Fans & Blowers |
|---|
